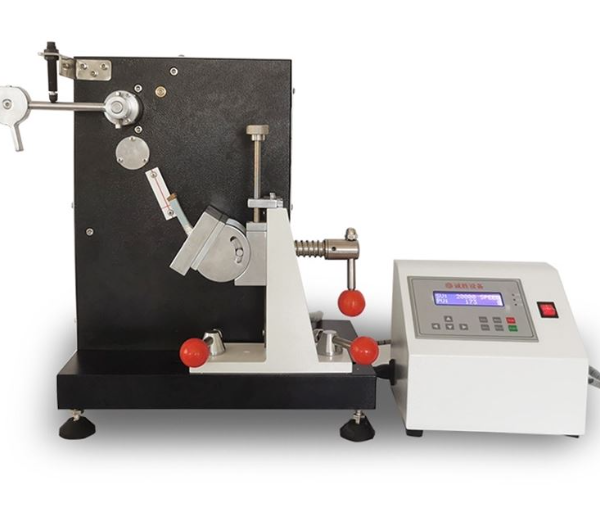

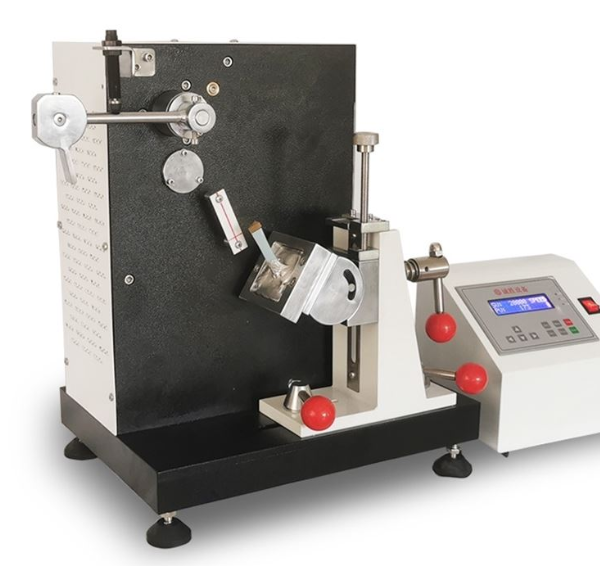

BS-5131 WOMEN’S HIGH HEELS CONTINUOUS IMPACT TESTING MACHINE

Introductions:

The heel continuous impact tester tests the maximum bearing capacity of the heels of women’s high heels under the test state to simulate the number of repeated small impacts suffered by people during normal walking.

Comply standards:

BS-5131, SATRA TM21 QB/T 2864 and other standards.

Features:

• Surface treatment of the machine: using American DuPont powder, electrostatic spray painting process, high temperature 200℃ curing to ensure long-term non-fading.
• Universal adjustable fixed test fixture;
• Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials;
• LED-SLD806 integrated display control box, menu-based operation mode;
• High-precision bearings are selected, the rotation is smooth and stable, and the activity life is long;
• Repeated impact comes with impact buffer;
• Universal movable fixture, different size specimens, adjustable angle;

Parameter

Impact energy           0.68± 0.02J

Strike frequency         60 times/minute

Impact hammer      F(57±1)mm, thickness (20±1)mm

                                  Moving part of fixture

                                   Adjustable up and down, front and back

                                  Adjustable range of specimen seat

                                 Height (H) -25mm

                               Adjustable up and down, front and back

                              0-90 degrees

Voltage                          AC 220V

Weight                               75kg
