Desktop Spectrophotometer

Desktop Spectrophotometer

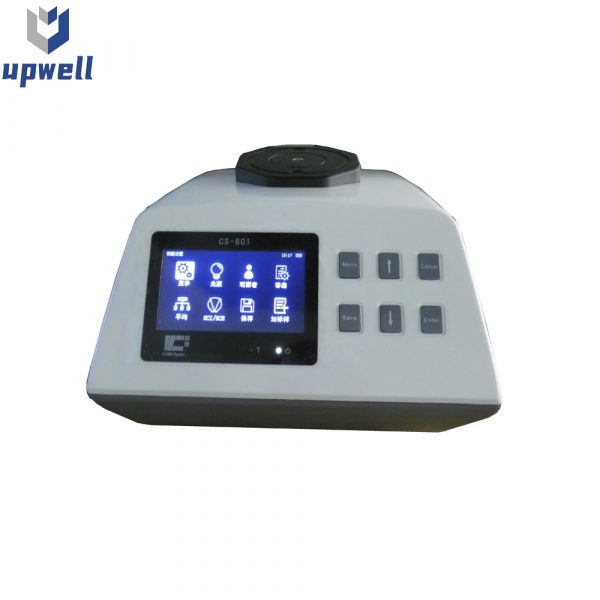

Desktop Spectrophotometer is a high performance spectrophotometer with test caliber sideward.

Categories: Tags:
  • Description
  • Inquiry

APPLICATION

Desktop Spectrophotometer is a high performance spectrophotometer with test caliber sideward.This Desktop Spectrophotometer could be widely used for printing, textile, plastic, food, medicine, automobile industries to meet customers’ color measurement requirement, especially suitable for powder color measurement in case of material falling into the integrating sphere to affect the testing accuracy. USB data transmission and with PC software to control the color data.Its test caliber is in the sideward which is more convenient to fix the sample.



KEY SPECIFICATION  of Desktop Spectrophotometer



Illuminationd/8 (Diffused lighting, 8 degrees observe angle)
Size of integrating sphereΦ40mm
Illumination light sourceCLEDs (entire wavelength balanced LED light source)
Sensorblue light enhanced sensor array
Wavelength range400~700nm
Wavelength interval10nm
Half spectral width5nm
Reflectivity range0~200%
Reflectivity resolution0.01%
Observation angle2°/10°
Measurement timeAbout 1 second
Color spaceCIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, reflectivity
Data storage20000 test results
Inter-instrument agreementΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size350*300*200mm(L*W*H)
WeightAbout 4.5kg
DisplayTrue color screen that includes all colors
Work temperature range0~45°C, relative humidity 80% or below (at 35°C), no condensation
UV light sourceWithout
