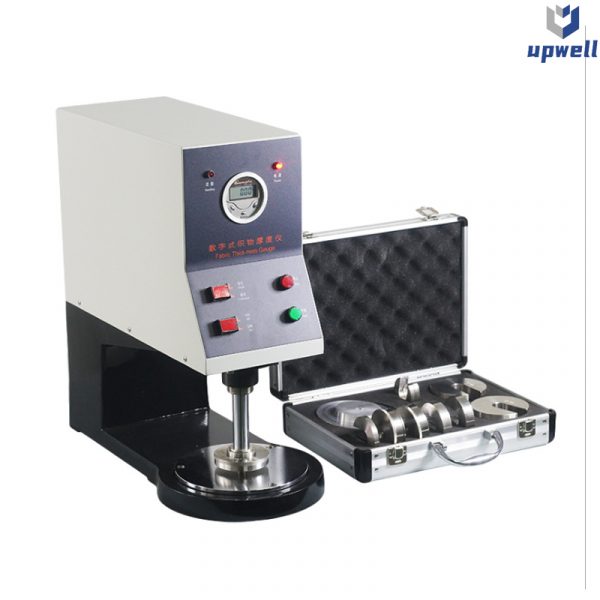

Digital Fabric Thickness Gauge
Digital Fabric Thickness Gauge
Standard: ISO5084,聽FZ/T60004,聽ISO9073, ISO 9863, ASTM D5199, ASTM D1777….etc.
- Description
- Inquiry
Introduction
Fabric Thickness Gauge聽is applicable of聽measuring聽the thickness of tissue paper, woven, knitted fabrics, non-woven and other uniform materials.
Parameter:
| Thickness measuring range | 0-25mm |
| Min. graduation value | 0.001mm |
| Press foot diameter | 11.28mm,聽50.48聽mm,聽56.42 mm, 112.84 mm |
| Presser foot area | 100, 2000,聽2500,聽10000(mm2) |
| Weighing poise | 5cN,10cN,聽50cN,聽100cN,400cN,1000cN |
| Press time | 10s,30s |
| Weight | 30kg |
| External Dimension | 210x450x400mm |
| Power | AC 110V/220V, 50Hz/60Hz |
