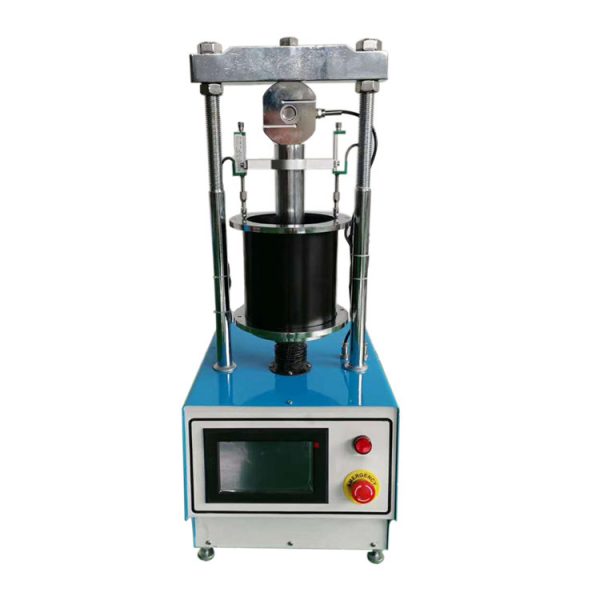

Electric digital Soil California Bearing Ratio Testing Machine CBR Tester
Electric digital Soil California Bearing Ratio Testing Machine CBR Tester is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed subcrust as well as material layer of the roadbed to be designed.It consists of a double column frame, a force sensor, a through bar, a loading plate, a displacement sensor and an expansion increment measuring device.
- Description
- Inquiry
Electric digital Soil California Bearing Ratio Testing Machine CBR Tester is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed subcrust as well as material layer of the roadbed to be designed.It consists of a double column frame, a force sensor, a through bar, a loading plate, a displacement sensor and an expansion increment measuring device.
Parameters:
Maximum load | 5 0 kN |
Load speed | 1mm/min (BS1377-4) OR 1.27mm/min (ASTM D1883) It can be set by itself |
Penetration rod | Dia.50 mm x 100 mm |
Displacement sensor | Indexing value of 0 – 2 5 mm : 0.01 mm Linearity : 0 . 3 % |
Perforated plate | two pieces |
Load plate | 4 pieces (Each piece weighs 1 . 2 5 kg ) |
Test mould | diameter152 mm , height 170 mm |
Power voltage | 220V,50Hz,500W |
Net weight | 86.8KG |
Gross weight | 102KG |
Package outline size | 570*460*1020mm |
NOTE:Load plate and Test mould can be customized according to different specifications.
