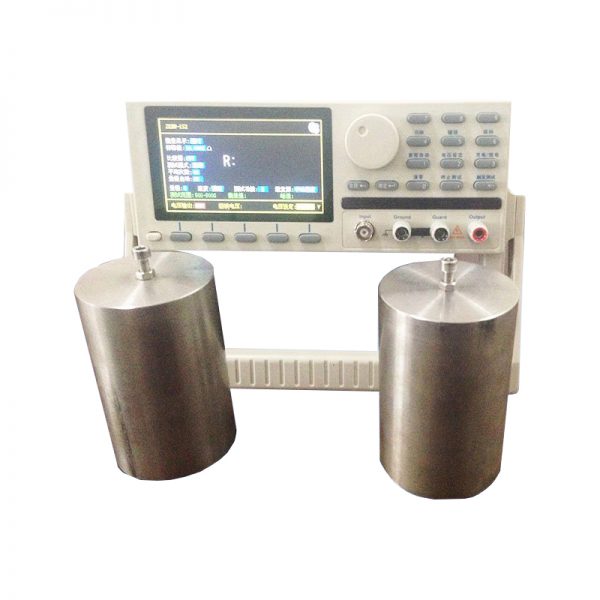

EN1149 Fabric Surface Resistance Tester

ntroduction:

EN1149  Fabric Surface Resistance Tester It is produced according to relevant standards and is mainly used to test the point-to-point resistance of anti-static clothing. It is widely used in special labor protection product supervision and inspection stations, safety production science research institutes, product quality inspection institutes, and anti-static clothing manufacturers.

Features:

1. Equipped with special stainless steel cylindrical electrodes and conductive rubber.
2. It adopts ARM processor control and outputs any voltage output of 0~1000V to meet any test voltage requirements.
3. TFT LCD display screen, real-time display of time, voltage, resistance, test mode and other related data. The maximum display digit of resistance is 9999.
4. CHT9800 RS232 interface or Handler (PLC) interface line and related software are optional, and the test data can be directly read and saved to the computer.
5. The test is divided into six-range automatic test and manual test. The automatic test does not require manual selection of the test gear.
6. The upper and lower limit alarms can be set, and the qualified or unqualified alarms can be set.

Standard:

EN1149-1 EN1149-2

Technical specifications:

1. Test range: 10³-5*10¹⁴Ω
2. Test error: ±3%.
3. Test electrode: composed of ring electrode and chassis electrode.
4. Conductive rubber: Shore hardness 60±10, thickness 6±1mm, volume resistance <500Ω.
5. Output voltage: 1~1000V, standard 100V.
6. Test time: can be set within 0-999.9S.
