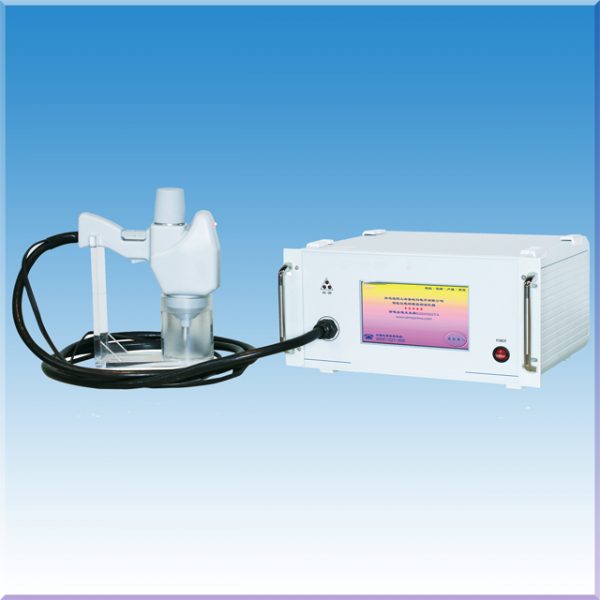

EN/IEC61000-4-2 ISO10605 EMC ESD Simulator 20KV 30KV
Intelligent electrostatic discharge generator is designed specifically against electrostatic discharge immunity test requirements, and used to assess the electrical and electronic equipment to suffer from the operator and the surrounding objects electrostatic discharge interference, to provide a performance rating basis.
- Description
- Inquiry
Introduction
Intelligent electrostatic discharge generator is designed specifically against electrostatic discharge immunity test requirements, and used to assess the electrical and electronic equipment to suffer from the operator and the surrounding objects electrostatic discharge interference, to provide a performance rating basis.
Feature
- Fully compliant with the latest standards of IEC61000-4-2
- LCD interface display ,Chinese or English menu, easy to use
- LCD display Intelligent control, Use the Programmable imported high-voltage power supply, Reliable performance
- Built-in international standards level parameters, simple
- Built-in international standards level parameters, easy to useMax output voltage up to 30kv
- Built-in the RS232 interface ,Remote operated by the optional control software.
Parameter:
Model | ESD 20KV | ESD 30KV |
Output voltage | 0.2– ± 20kV ± 5% | 0.2– ± 30kV ± 5% |
Output polarity | Positive / Negative /Switchable | |
Discharge capacitor | 150pF/330pF | |
Discharge resistor | 330 Ω/2000Ω | |
Current rise time | 0.7 ~ 1ns | |
Working form | Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge | |
Testing functions | Contact discharge | |
Air discharge | ||
Discharge times | Presetting times 1-9999 or infinite times | |
Trigger mode | 1.Automatic 2.Manual 3.automatic voltage rises | |
Working power supply | AC220V ± 10%,50 Hz | |
Ambient temperature | 15 ℃ -35 ℃ | |
Outline dimensions and weight | 350×360×175 mm 10kg | |
