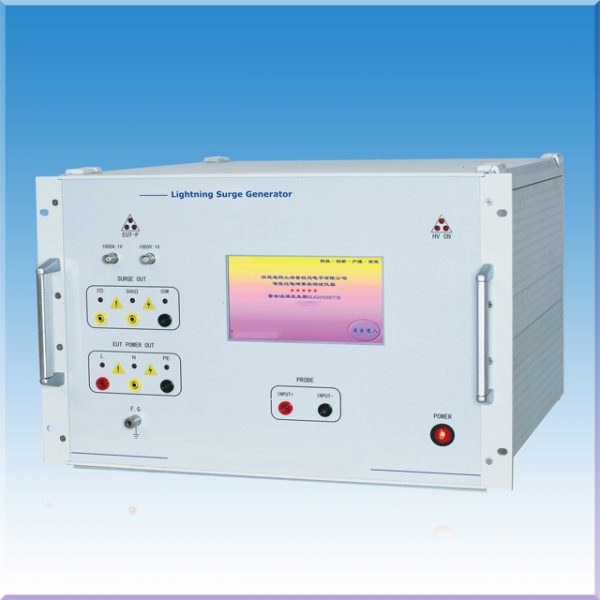

6KV EMC Test Surge Generator For Surge Immunity Test
Surge pulses occure due to direct or indirect lightning strikes or by power system switching transients caused by switching inductice loads or short circuits. This leads to currents or electromagneti fileds causing high voltage or current transients. The energy is particularly large. And the impact on products may be destructive. A lightning surge generator is used to evaluate the performance of device subjected to high energy disturbances from the power line port and other signal line ports. Our surge generators simulate these disturbances for all the necessary voltage levels in accordance with IEC/ EN 61000-4-5.
- Description
- Inquiry
Introduction
Surge pulses occure due to direct or indirect lightning strikes or by power system switching transients caused by switching inductice loads or short circuits. This leads to currents or electromagneti fileds causing high voltage or current transients. The energy is particularly large. And the impact on products may be destructive. A lightning surge generator is used to evaluate the performance of device subjected to high energy disturbances from the power line port and other signal line ports. Our surge generators simulate these disturbances for all the necessary voltage levels in accordance with IEC/ EN 61000-4-5.
Feature:
- Fully compliant with the latest standards of EN/IEC61000-4-5
- Large LCD interface display, Chinese or English menu, easy to use
- LCD display, Intelligent control,Use the imported high-voltage power supply, Reliable performance
- Programmable operation by a key setting
- Built-in international standards level parameters and user models parameters, simple
- Built-in intelligent couping / decoupling network. Testing safety
- Impulse injected the phase angle asynchronous or 0-360 ° free to set
- The surge test Fully automatic switching without human operation
- Built-in the RS232 interface ,Remote operated by the optional control software.
Parameter
Open -circuit t voltage/short-circuit current | Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV |
Surge polarity | Positive / Negative/Asynchronism |
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism |
Output impedance | Complex impedance: 2 Ω 12Ω |
Coupling path | Built-in, one phase three line,,max 16A |
Surge count | 1~9999 |
Surge interval | 10~999S |
Working power supply | AC220V 50/60Hz |
Ambient temperature | 15℃~35℃ |
Outline dimensions | 480×520×320 |
