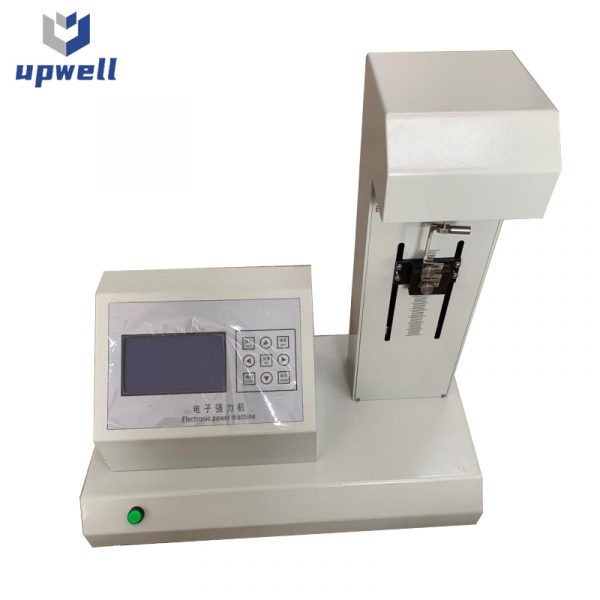

Fiber Strength Tester
Electronic Single Fiber Strength Tester, also named single fiber strength tester or fiber strength tester.The tensile strength testing machine is used to determine the breaking strength and elongation at break of single textile fibers, such as, cotton, wool, ramie, silk, glass fibber and chemical fibers.
- Description
- Inquiry
Electronic Single Fiber Strength Tester, also named single fiber strength tester or fiber strength tester.The tensile strength testing machine is used to determine the breaking strength and elongation at break of single textile fibers, such as, cotton, wool, ramie, silk, glass fibber and chemical fibers.
Parameter:
| Clamp type | Manual |
| Load cell & accuracy | 200cN±0.5% |
| Force resolution | 0.01cN |
| Gauge length | 10~60mm, digitally-settable |
| Max. extension | 150mm |
| Tensile speed | 2~100mm/min |
| Power supply | AC220V 50Hz |
