Fully-Automatic Fiber Thermal Shrinkage Tester Comply FZ/T 50004

Introduction:

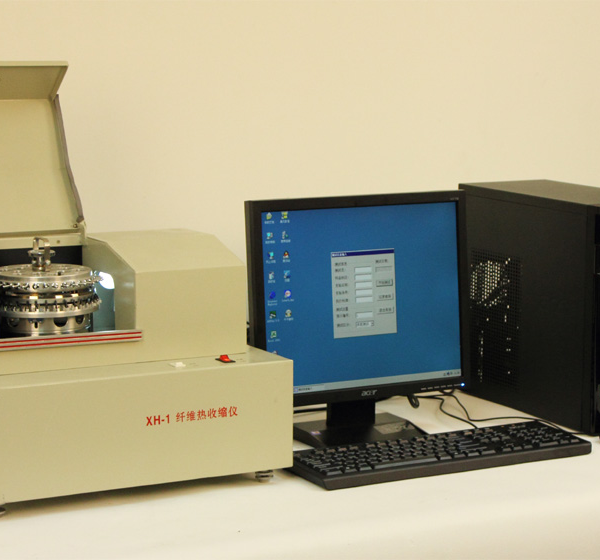

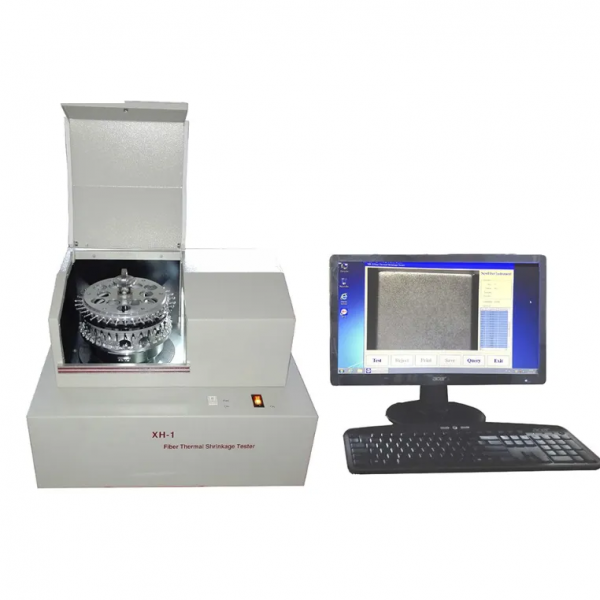

Fiber Thermal Shrinkage Tester is the latest image-based high precision testing apparatus. It is developed to measure the dry thermal shrinkage of chemical fibers. The apparatus obtains the length of each objective fibers on the sample cylinder with a camera, calculates the difference of each fiber length before and after it is thermally treated, and then automatically calculates the average fiber thermal shrinkage and variation coefficient. The testing process is monitored by a computer, and the testing data are displayed and printed automatically.

The apparatus measures fast for using image processing method, and the results are precise and reproducible. The apparatus can be easily operated and it works with good stability.

The apparatus accords with the demand of standardized measuring method by the trade standard FZ/T50004. It is used to measure the dry thermal shrinkage of chemical fibers. And it can be widely used in man-made fiber manufactories, fiber-testing inspection bureau, and scientific research institutions, etc.

Features:

1. Finely constructed with high automation to reduce the repetitive manual labor and improve the efficiency;

 2.Equipped with one revolving plate, convenient to put specimen on the sample cylinder;Sample cylinder on the revolving plate

3.  sample cylinders are offered for XH-1, the software supports 2 different sample cylinders cross testing, greatly improved testing speed and efficiency.

4. The software design is straightforward. The test report can be printed directly, or can be exported into EXCEL format, convenient for operation.

Parameter:

 Measuring range of thermal shrinkage:   0~25%

Precision: ±0.01mm

Error of the thermal shrinkage: ≤±0.1%

Gauge between the upper and the lower clamp: 20mm±1mm

Number of objective fibers on the sample cylinder: 35

Power: 220V±10%

Mainframe weight: around 20kg

Mainframe size: 450×300×360 (mm)
