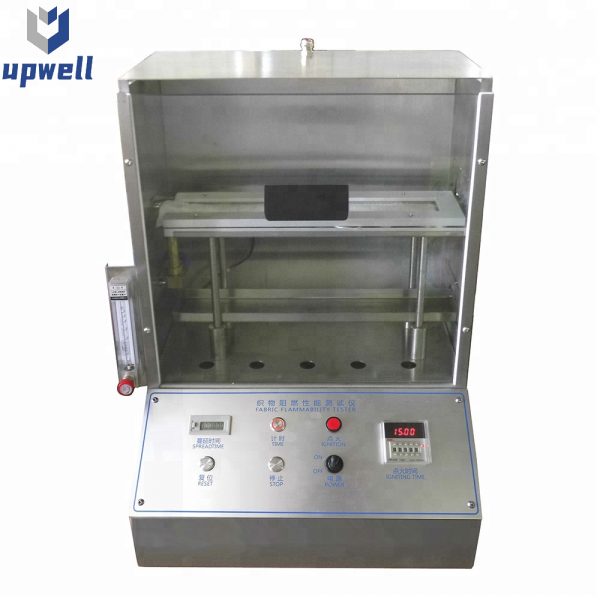

FZ/T01028 Textile Fabric Horizontal Flammability Burning Test Chamber

Horizontal Flammability Test Chamber is applicable to access the flammability performance of textiles by determining the flame spreading speed in the horizontal direction.

Related Testing Standard:FZ/T01028

Description
Inquiry

Application:

Horizontal Flammability Test Chamber is applicable to access the flammability performance of textiles by determining the flame spreading speed in the horizontal direction.

Features:

Exhaust vents at the bottom and top of test chamber ensure good ventilation and steady flame.

Ignition time and burning time duly displayed on LED panel.

Stop lighting automatically after igniting 15s.

Specially provide metallic comb for pile fabrics.

Textile Fabric Horizontal Flammability Burning Test Chamber Parameter:

Time range	0~999.9s
Time resolution	0.1s
Temperature range	0~99°C
Temperature resolution	1°C
Ignition time	15s
Inner diameter of burner head	9.5mm
Ignition height (burner top to specimen center)	19mm
Flame height	38mm
Power supply	Ac220V 50Hz
Chamber size	550×300×350mm(L×W×H)
Instrument dimension	560×350×460mm(L×W×H)
Weight	24kg
Size of specimen holder	Outer size 360×100mm(L×W) Inner size 330×50mm(L×W)
