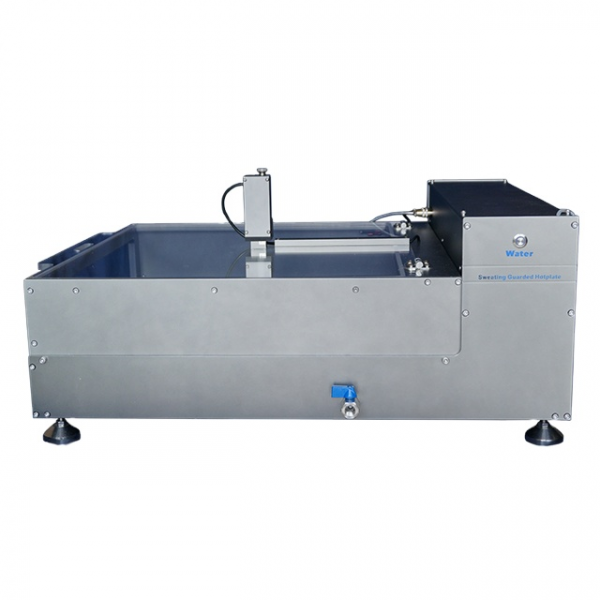

ISO 11092 Fabric Thermal Water Vapor Resistance Tester Textile Sweating Guarded Hotplate Tester

ISO 11092 Fabric Thermal Water Vapor Resistance Tester Textile Sweating Guarded Hotplate Testeris currently a professional, high-precision thermal resistance test product. It has a heating plate that completely simulates the human skin mechanism, is not moldy, easy to clean, and is equipped with simple and convenient computer software, which is easy to use.
The air duct structure can be simply disassembled, and an optional air hood can be connected to meet the static test and dynamic test required by the standard.

Standard:

GB/T 11048-1989, GB/T 11048-2008, GB/T 11048-2018, ISO 11092, ASTM F 1868-09, BS 8515, ASTM D 1518-2014, JIS L1096-2010, ASTM F 1868-02

Feature:

1. Quickly reach the test stable state, the machine automatically adjusts the PID control parameters according to the thickness of the sample, which can quickly reach the test conditions.
2. The wind speed is continuously adjustable from 0 to 1.2m/s, which can meet any moisture resistance, thermal resistance and warmth performance test standards.
3. The width of the thermal guard ring is 127mm to ensure that the heat flow is only transferred from the test sample.
4. The connection with the computer adopts wireless Wifi communication, which makes the connection more convenient.
5. The thick aluminum alloy shell of the whole machine guarantees the service life of the machine more than 20 years.
6. Friendly and convenient test software, which is equipped with various test standards, which is convenient for users to use.



Main Parameter:

1. Thermal resistance (RCT) range: 0.002~2.0 m2.K/W
2. Resolution: 0.0001m2 .K/W
3. Temperature range of test board: 20℃~50℃ adjustable
4. Temperature control accuracy: ±0.03℃
5. Temperature resolution: ±0.01℃
6. Wind speed: 0~1.2m/sec continuously adjustable
7. Wind speed control accuracy: ±1%
8. Test sample thickness: 0~50mm
9. Test board area: 254mm×254mm
10. Sample area: 512mm×512mm
11. Width of thermal guard ring: 127mm
12. Dimensions: 73×61×35cm (not including environmental test box)
13. Weight: 60kg
14. Power source: AC220V 100W or AC110V 100W
