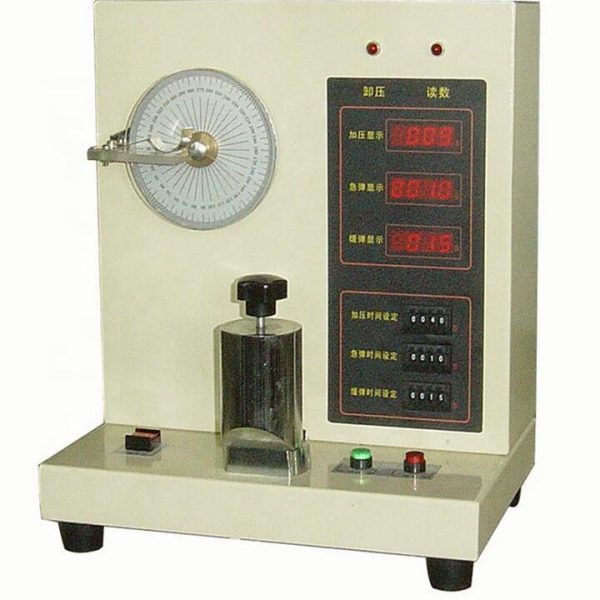

ISO 2313 Fabric Textile Crease Recovery Tester

ISO 2313 Fabric Textile Crease Recovery Tester and Loading Device,This instrument is suitable for all kinds of textile fabrics, not suitable for particularly soft or easily rolled up fabrics.

In the process of wearing, the fabric is deformed by rubbing and bending, forming irregular creases, which affect the appearance to the same degree and reduce the wearing performance of the fabric. Therefore, the crease recovery performance of fabrics has become an important indicator for evaluating the quality of fabrics.

This instrument adopts the crease horizontal recovery method to measure the performance of various textile fabrics under the specified conditions when they are folded and pressurized.

Applicable standard: AATCC66,ISO2313,JISL1059,KSK0550,KSK0551,KSK0556,BSEN22313

Parameter

1. Test station: 1

2. Sample size: 40mm×15mm

3. The pressure load of the sample: 10N, the error: ±1%

4. Measurement range of recovery angle: 0~360 degrees, resolution: 1 degree

5. Sample pressurization time: 5min±5s

6. Time setting: 1s~9999s with a resolution of 1s

7. Crease recovery time: 5 minutes after decompression (slow bombing); 15 seconds (rapid bombing)

8. Power supply: AC 220V 50Hz Power: 10W

9. Dimensions: 280mm×300mm×190mm
