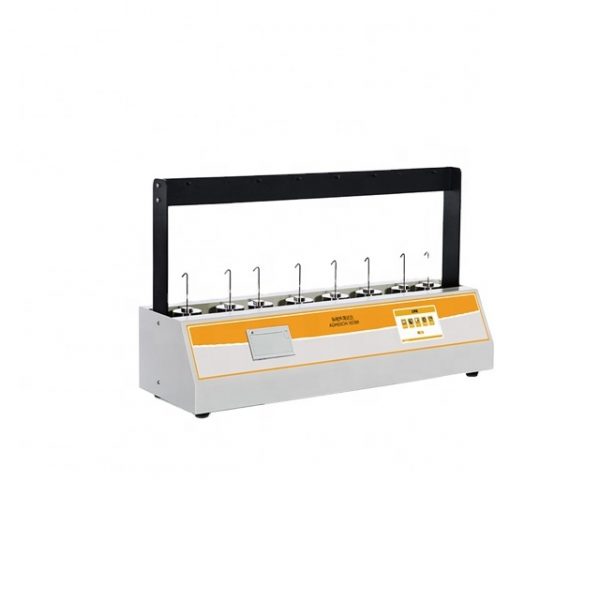

ISO 29836 Laboratory Adhesive Label Retentivity Mechanical Tester

ISO 29836 Laboratory Adhesive Label Retentivity Mechanical Tester for basic applications are suitable for testing the stickiness of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, etc.

Feature:

Equipped with a 5-inch IPS industrial-grade high-definition touch screen, which is touch sensitive and convenient for users to quickly perform test operations and data viewing

Support multi-level user authority management, can store 1000 sets of test data, convenient for users to query statistics

Eight groups of test stations can be tested at the same time or manually at designated stations, making the operation more intelligent

The built-in silent printer will automatically print the test results after the test is over, the data is more reliable

Automatic timing, smart lock and other functions further ensure the high accuracy of test results

Parameter:

Standard pressure roller: 2000 g ± 100 g
Weight: 1000 g ± 5 g (including triangle hook weight)
Test board :125 mm (L) × 50 mm (W) × 1.1 mm (D)
Timing range: 0 ~ 10000h (standard configuration)
8 stations
Dimensions: 800 mm (L) × 800 mm (H) × 240 mm (W)
Power supply :AC 220V 50Hz / AC 120V 60Hz
Net weight :23 kg

Standard configuration: host, micro printer, weight, triangle hook, test board, standard pressure roller
Optional configuration NIST SRM1810A fiberboard, level test accessories: level test frame, weight, test board, etc.
