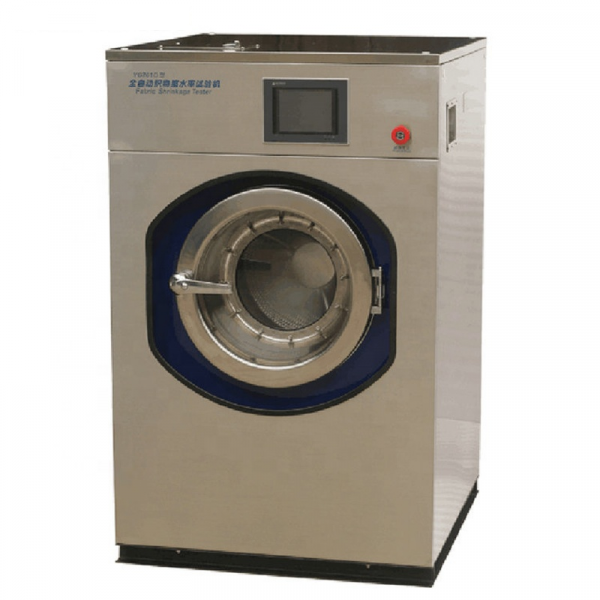

ISO 6330 Automatic Fabric Textile Shrinkage Test Machine

Water fabric shrinkage test machine  is used for testing the shrinkage and relaxation after washing of various textiles such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc. It is fit for the factory and testing center with the long-term test.

Standards: ISO5077/6330-2012, IWSTM31, BS EN25077/26330, JIS L1909 and so on.

Features :
1. The apparatus used are for industrial design, suit to the harsh long continuous testing requirements

2. Suspended inner canister exclusive used, smoothly operation without vibration Include 12 groups washing programes, users can prepare 6 groups their own shrinkage procedures, and provide programs storage

3. Variable frequency control technology used, to protest the electrical safety and the smooth operation.

4. Large touch screen display, figures show clearly.

5. Using high-precision pressure sensors, to ensure that accurate and reliable water level.

6. Ourside and inside fully use stainless steel.

Main Parameter

1. Category: Horizontal roller type, front door feeding mode.

2. Inner layer roller:  diameter : 520+/-1mm, depth: 315+/-1mm

3. Inner & outer roller gap: 2.8cm+/-0.1cm

4.Lift vane quantity: 3 PCS 120° even distribution.

5. Lift vane height: 53mm+/-1mm

6: Rotation action: Normal: Clockwise rotation (12±0.1)S, stop (3±0.1)S

                                Anticlockwise rotation (3±0.1)S, stop (12±0.1)S

                               Soft: clockwise rotation (3±0.1)S, stop (12±0.1)S

                               Anticlockwise rotation (3±0.1)S, stop (12±0.1)S

7. Rotating speed: Washing time: 52r.p.m   Spin : (500±20)r.p.m

8. Water level control: Low level:10cm , High level:13cm

9. Fill water time< 2min (water in high level 13cm

10. Drainage duration: < 1min (water in high level 13cm)

11. Setting range to water temperature: Room temperature to 99℃ (accuracy: ±1℃)

12. Heating power: 5.4kw

13. Washing capacity:5kg

14. External Dimensions: 850mm×750mm×1200mm

15. Weight: 140Kg

16: Power source Three-wire four-phase 380V±10% 50Hz
