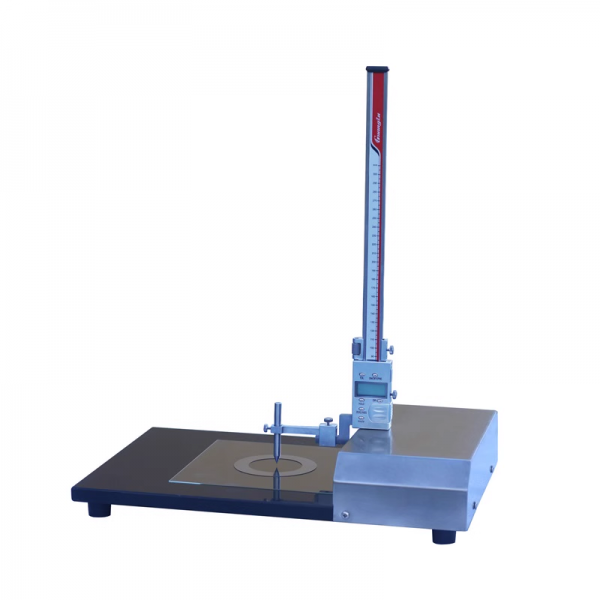

ISO 9073 FLUFFY FABRIC THICKNESS GAUGE TESTER

Introduction:

Fluffy fabric thickness gauge tester is suitable for measuring the thickness of textiles under a specified pressure.

Fluffy fabric thickness gauge tester is suitable for bulky specimens with a thickness greater than 20 mm.

Applicable standards:

ISO 9073-2-1995 Textiles – Test method for nonwovens – Part 2: Determination of thickness

Technical Parameters:

Square measuring plate, area: (200 ± 0.2) mm x (200 ± 0.2) mm

Square measuring plate, mass: 82 g ± 2 g; thickness: 0.7 mm

Square test plate pressure: 0.02 kPa

Horizontal square reference plate, smooth surface, area: 300 mm x 300 mm.

The scale is equipped with a horizontal measuring arm B that can be moved up and down. Vertical measurement accuracy: 0.01mm

The horizontal measuring arm is equipped with an adjustable vertical probe T.

The vertical probe is 100mm from the scale.
