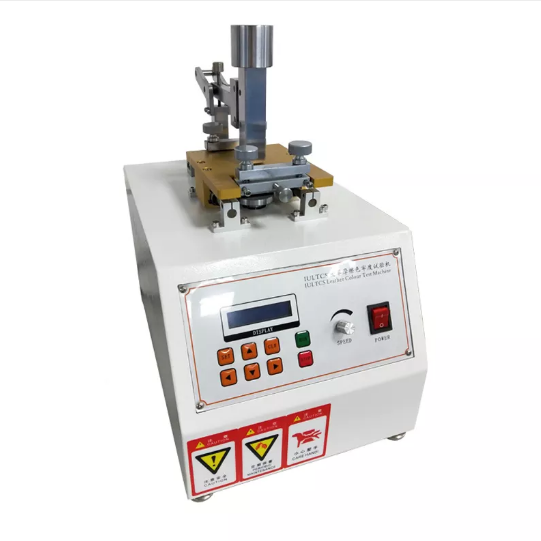

Lultcs and Veslic Abrasion Tester Comply ISO 11640
- Description
- Inquiry
Introduction：
Lultcs and Veslic Abrasion Tester test the degree of decolorization of dyeing leather after friction. It can used to test the leather color resistance to dry, wet and friction.
Feature:
Lultcs and Veslic Abrasion Tester is the working table driven by motor with specifiedÂ
speed and standard pressure to do reciprocating linear motion, the motor automatically stop if it arrives the specified number.
Standard:
ISO-11640, SATRA TM173, IUF 450, DIN 4843, EN ISO 20344 (7.3)
Parameter:
| Model | Lultcs and Veslic Abrasion Tester |
| Testing block size | 15 * 15mm (if need) |
| Auxiliary load | 500g, 1000 g |
| Testing table range | 37 mm ± 1mm |
| Speed of abrasive head |  40 ± 2/min |
| Maximum Speed of abrasive head |  setting 9999 * 1, 9999 * 10 times, 9999 * 100 times |
| Volume  | 30.5 * 43 * 47.5cm |
| Power | Â 20W |
| Power supply |  AC220V 50HZ |
| Outside dimension | 275mm * 245mm * 366mm |
| Weight | Â 21kg |
