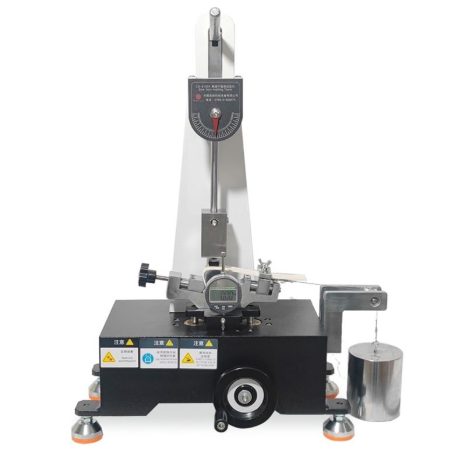

SATRA TM223 SOLE MARKING TESTER

Introdcution:

• Surface treatment of the machine body: using American DuPont powder, electrostatic spray painting process, and curing at high temperature of 200℃ to ensure that it will not fade for a long time.
• Handheld free release, fast friction sliding;

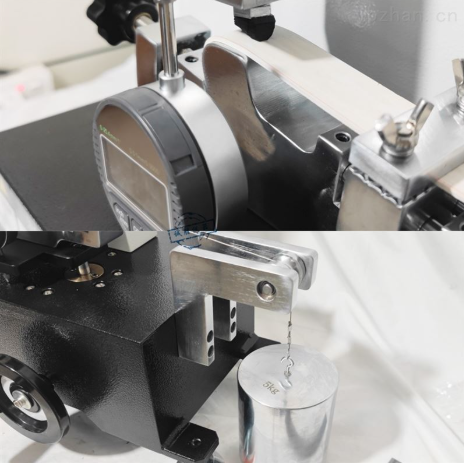

• Digital thickness gauge, intuitive adjustment;
• Quickly fix PVC floor clamp, open hook, simple weight installation;
• Pointer standard angle gauge, intuitive adjustment;

Parameter:

Pendulum load: 1000±10g

L weight: 5kgf±5g

Sample size: 12mm long, 10mm waist length

Floor size: 200±10mm×25±2mm

Distance between impact head and floor: 0.8mm±0.05mm

Impact angle: 0-90 degrees

Weight test height: 10-20mm

Impact wheelbase length: 230±10mm

Impact mode: Manual free release

Thickness range: 0.01-10mm

Accuracy: 0.01mm

Machine size: 500X320X660mm

Machine weight: 45kg
