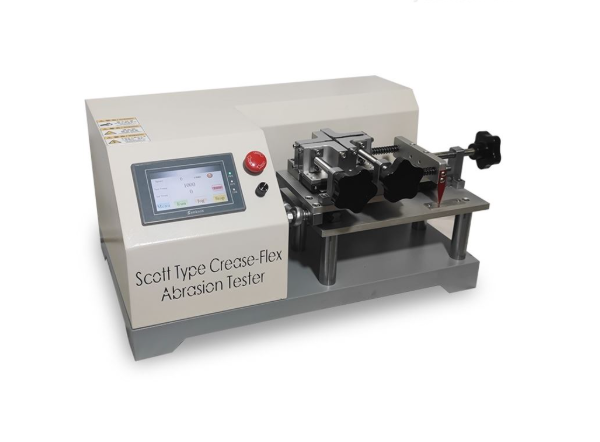

SCOTT CREASE FLEX ABRASION TESTER

Introduction:

The scott crease flex abrasion tester is used to test the rub resistance of simulated materials such as leather, fabric, and coated fabrics.

Standards:

JIS L1096, ASO M403QB/1333-2018

Instrument Features:

• Surface Treatment: Using DuPont powder, electrostatic spray painting, and high-temperature curing at 200°C, ensures long-lasting colorfastness.
• Mechanical components are constructed of non-corrosive aluminum and stainless steel.
• Precision drive motor for smooth, low-noise operation.
• LED-SLD806 integrated display control box with menu-based operation.
• High-precision bearings ensure smooth, stable rotation and long service life.
• One-touch automatic testing with independent control for simple and convenient operation.

Parameter:

1. Specimen load: 9.8N
2. Test speed: 120r/min
3. Test stroke: 0-50mm (adjustable)

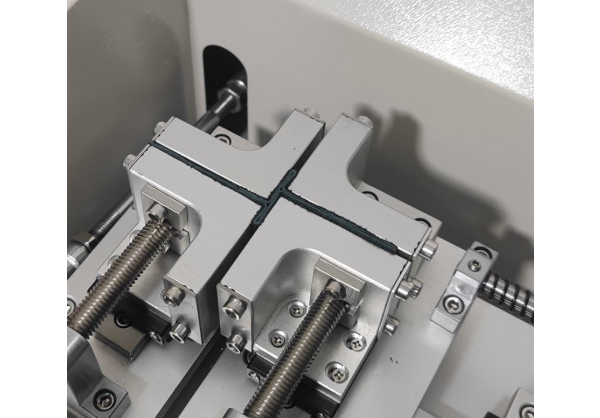

4. Clamp width: 45mm
5. Maximum distance between clamps: 40mm
6. Specimen dimensions: 120 x 30mm
7. Dimensions: 65 x 51 x 30cm
8. Controller: Color LCD display, speed display, and one-touch test function.
9. Counting range: 0-999999
10. Power: 400W
11. Weight: 45kg
12. Power supply: 220V 50Hz
