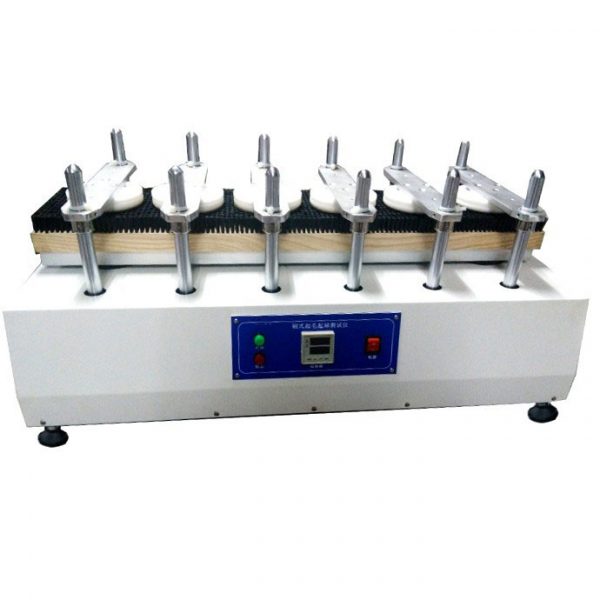

Textile Brush Sponge Pilling Tester Comply ASTM D 3511

Introduction:

Textile Brush Sponge Pilling Tester Comply ASTM D 3511  is for Simulates the pilling or fuzzing properties of fabrics under wearing and normal use conditions for apparel and automotive interior materials including woven and knitted fabrics.

There are 6 test heads, the method is to brush 2 identical samples in a circular path



Parameter

Round sample holder: 660±5g each, 3mm thick and 108mm diameter soft foam rubber covering fiber

Pilling range: within 19mm radius

Rotation frequency: 60rpm

Standard nylon brushes: mounted on plywood brackets, each bracket is removable and mounted on a rotating platform supplies

Brush: full brush belt, 790mm long, 8 for each testing machine

Brush bar height: effective height 24mm, total height 32mm

Brush seat: 790mm long

Brush installation: the distance between the center hole and the center hole is 35mm

Standard sandpaper: 320#, for grinding brush

Counting range: 0-999999 can be set arbitrarily

Power supply: AC220V, 50/60Hz
