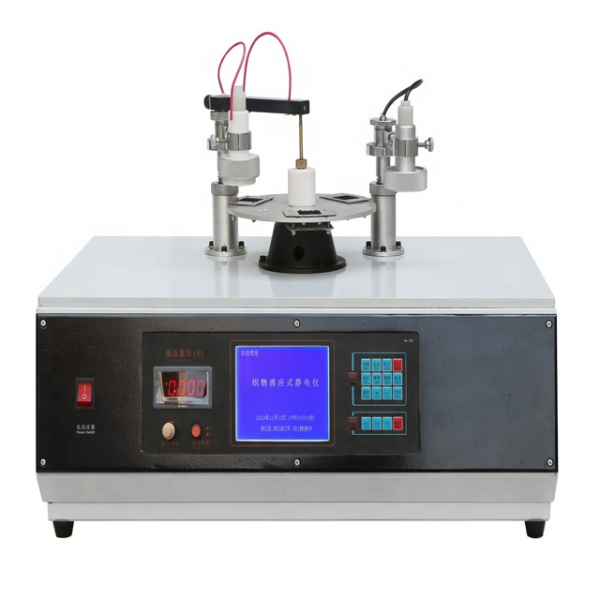

Textile Fabric Inductive Electrostatic Tester

Textile Fabric Inductive Electrostatic Tester This instrument is mainly used to test the electrostatic properties of textile fabrics by the half-life method, and can also be used to test the electrostatic properties of non-metallic plate or sheet materials and their finished products; this instrument is suitable for testing fabrics or various The electrostatic performance of non-metallic plate products or sheet products uses a given high-voltage electric field to periodically discharge the fabric to induce static electricity on the fabric, so as to detect the size of the static voltage, the half-life of the static voltage attenuation, and the amount of static electricity remaining. To show the electrostatic performance of the inspected fabric.

Main Parameter
1. Test method: constant voltage method or timing method, high voltage output voltage and high voltage maintenance time can be set
2. Turntable rotation speed: 1500rpm
3. Sample window size: 32×32mm (length×width)
Sample size: 60×80mm (length×width)
Number of samples: one piece each time
4. DC high voltage voltage: 0~10kV continuously adjustable, error ≤1%
5. Static voltage decay timing range: 1~9999.9s digital setting
6. High voltage discharge timing range: 1~99s digital setting
7. Pre-rotation time of synchronous motor: 1~99s digital setting
8. Discharge distance between needle electrode and sample: 20mm adjustable
9. The measuring distance between the test probe and the sample: 15mm adjustable
10. Dimensions: 700mm×480mm×450mm
11. Weight: 50kg
12. Power source: AC220V 50Hz
