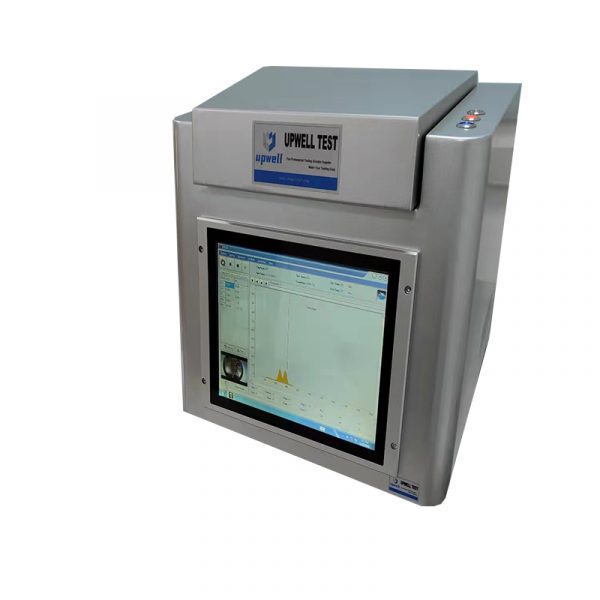

XRF Gold Analyzer Gold Purity Testing Machine

Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don鈥檛 need to prepare other computers, it can bring you super smooth experience feelings

It determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold

  • Description
  • Inquiry

Advantage聽

(1)Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don鈥檛 need to prepare other computers, it can bring you super smooth experience feelings

(2)It determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold

(3)The instruments possess own unique mode of 鈥渙ne-key test鈥, it is China first and same as Europe’s top spectrometers. No matter any unknown metal material, the operators don鈥檛 need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions

(4)Super long two years free warranty, confidence comes from pure European spectrometer production technology

(5)The instruments have an innovative function that can help customers identify gold-plated samples

(6)The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users

(7)Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)

(8)We can download and upload test data from network, and it is easy to view and share test results

(9)Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer

(10)Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed,Perfect human interface

Parameter聽

Performance and Configuration
Analysis Range聽1ppm to 99.99%
Accuracy聽0.1%(Au鈮96%)
Sample Form聽Solid, powder, liquid
Tube Voltage5KV ~ 50KV 聽(USA)
High Voltage Power Supply聽0 ~ 50KV聽
X-Ray Tube Current0渭A~1000渭A
CameraHD camera
Filters聽Selectable customized switches
Detector Type聽Proportional Counter tube
Resolution135卤5eV
Multichannel AnalyzerMulti channel Counter tube
Sample Chamber Size310 * 280 * 60 (mm)
Test Time10sec ~ 100sec
Measuring Element聽Au, Ag, Pt, Pd, Cu
Analysis SoftwareQualitative and quantitative analysis software
External Dimensions400 * 430 * 350 (mm)
Weight聽33Kg
Instruments Environmental Requirements聽聽聽
Ambient Temperature-5 掳 C ~ 40 掳 C (Suggested that in air conditioning room)
Relative Humidity15% ~ 90%
Power RequirementsAC 220V 卤 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby
