XRF Portable Precious Metals Handheld XRF Analyzer

Application field

1, iron and steel metallurgy, boiler, vessel, pipeline, such as manufacturing industry of high temperature and high pressure

2, non-ferrous metals, aerospace, weapons, submarine ships and other industries

3, scrap metal recycling materials

4, precious metal detection

5, geological and mineral exploration and survey

6, in situ detection of ore field

7, mining the mineral map drawing

8, undressed ore, ore concentrate and tailings in the process of washing test

9, undressed ore and concentrate on the determination of ore grade in procurement

10, archaeological research field test

11, archaeological and soil research

Feature

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.

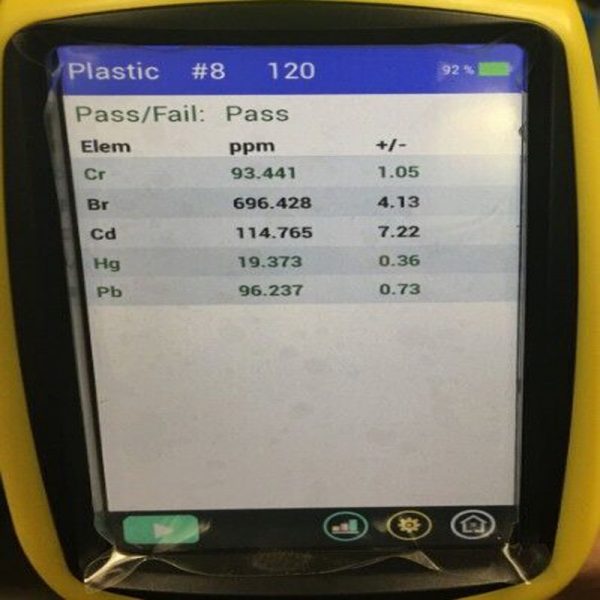

5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don’t need to take off gloves when they are opreating machine in some particular environment.

6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.

7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.

8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time;

Parameter:

Analysis Range :1ppm to 99.99%
Accuracy :RSD ≤ 0.05% （Au ≥ 96%）
Sample :Form Solid, powder, liquid
Test Time: 2sec ~ 30sec
X-Ray Tube :Voltage 0KV ~ 50KV
X-Ray Tube Current :0μA ~ 38μA
Filters Selectable :customized switches
Detector Type :Si-pin
Resolution: Si-pin 145 ± 5eV
Multi-channel Analyzer :DMCP
Analysis Range from: sodium (Na) to plutonium (Pu)
Application: Rapid analysis of more than 2000 kinds of minerals and alloying elements，Able to identify 556 kinds of alloy, and contain alloy brand database
Analysis Software :KEY-FP qualitative and quantitative
External Dimensions 290 * 230 * 90 (mm)
Instrument Weight :1.5Kg (With battery)
Instruments Environmental Requirements
Ambient Temperature -10 ° C ~ 55 ° C
Relative Humidity <90%
