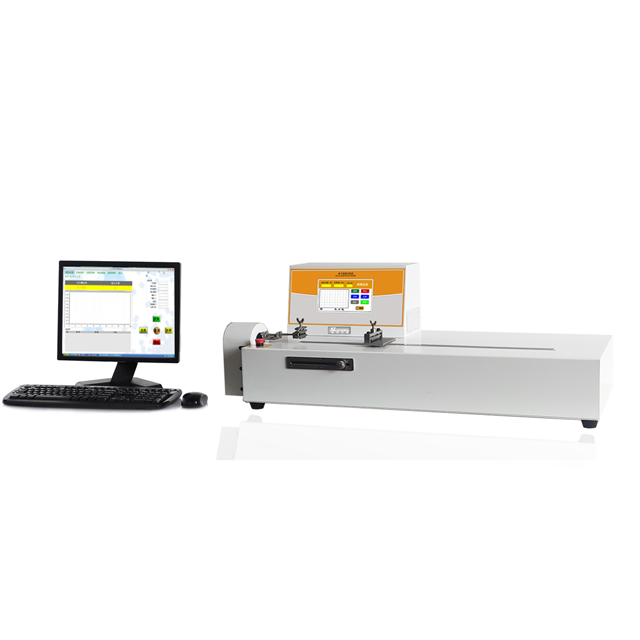

The peeling force tester is suitable for the peeling of food plastic packaging, daily cosmetics plastic packaging, adhesives, adhesive tapes, stickers, medical patches, protective films, composite films, artificial leather, woven bags, films, paper and other related products. It can be used for professional equipment for QS certification of food packaging for performance testing such as pull-off. What kind of preparations do you need to do before installation of the 180-degree peel force testing machine? Today, we will provide you with the correct method:
Installation method of 180 degree peel testing machine:
1) The testing machine should be installed in a clean, dry, vibration-free room and the room temperature can be controlled at (10～35)℃. And the room should have enough space to ensure that there is more than 70cm space around the testing machine for testing and daily maintenance.
2) Dig a pit downward from the installation position of the testing machine, the size is greater than 50cm in length and width than the base of the testing machine, and the depth is not less than 30cm.
3) Pour concrete with a strength rating of not less than C20 in the pit, and leave holes for anchoring anchor screws and pipes for installing circuits and sensors when pouring the concrete. The plane of the concrete foundation should be leveled horizontally.
4) The testing machine is connected to a three-phase four-wire power supply, and the power supply should be equipped with an air switch and a leakage protection device. The distance between the wire and the ground should be greater than 150 cm, and a manual switch should be installed on the wire to control the power supply of the testing machine.
Note：
1) In some tests, the beam will return automatically after the test. The limit distance must be set before the test. Otherwise, the limit distance will damage the fixture and the sensor.
2) To replace the parts, please turn off the host and exit the program before they can be replaced.
3) When the tape peeling tester is not in use, be sure to cut off the power supply.
