 Akron Vulcanized Rubber Abrasion Tester ISO4661 ISO1826
- Description
- Inquiry
Introduction

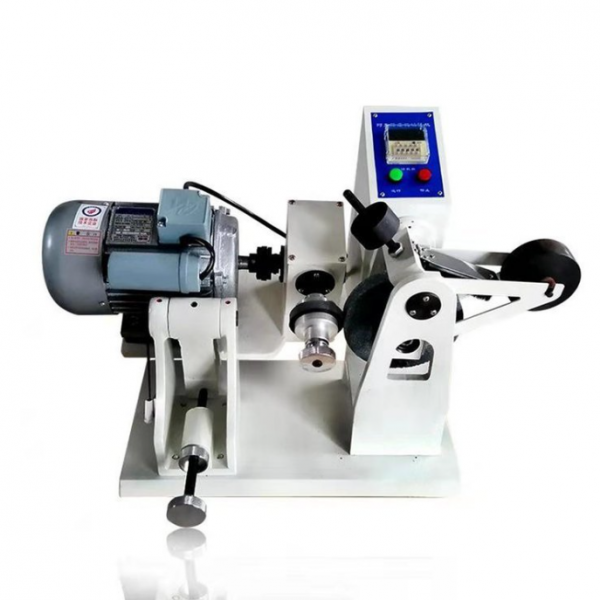

Akron Vulcanized Rubber Abrasion Tester Applied to test the wear ability of vulcanized rubber. It tests the abrasion consumption in certain testing range by the friction
under certain tilt angle and load. With digital setting and displaying the times of friction, automatically stop and integrate the host and controller.
Standard
ISO:4661-1:1993, ISO 2481:1988, ISO 471:1983, ISO 1826:1981
Parameter
The force on the rubber wheel :Â 26.7N (2.7Kgf)
The rotation speed of the rubber wheel shaft :76±2r/min
The rotation speed of the grinding wheel shaft :33-35r/min
The angle between the grinding wheel shaft and the grinding wheel shaft can be adjusted from 0° to 45°
The power supply voltage : AC220V±10%
Dimensions (length x width x height) 600mm x 480mm x 400mm
Net weight 60Kg
