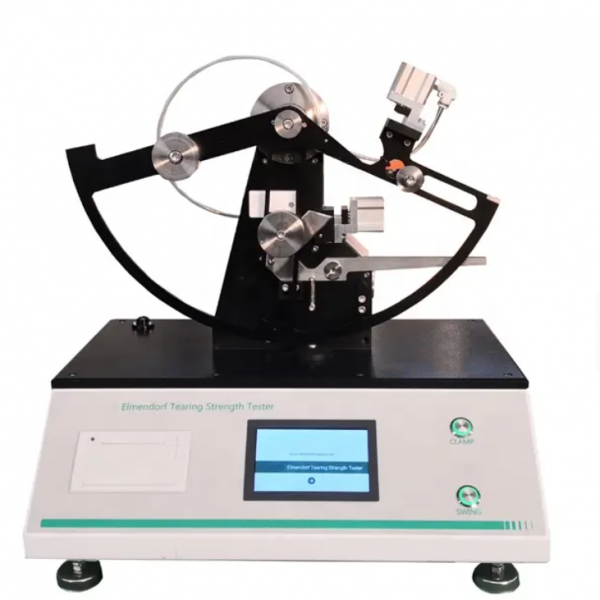

Paper Plastic Film Sheet Elmendorf Tearing Strength Tester Comply ISO 6383 ASTM D1424
- Description
- Inquiry
Introduction:
Paper Plastic Film Sheet Elmendorf Tearing Strength Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.
Comply Testing Standard:
ISO 6383-1, ISO 6383-2, ISO 1974, ASTM D1922, ASTM D1424,  ASTM D689, TAPPI T414, ASTM D1922
Feature :
- The instrument is controlled by micro-computer, touch screen operation.
- The instrument is designed by automatic and electronic measurement which improves the testing accuracy
- Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
- Computer assisted horizontal adjustment system could maintain the instrument optimum status
- Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control
- Professional software supports multi-unit data output
- Equipped with pendulums of multiple capacitiesÂ
Parameter:
| Pendulum Capacity                               | 200gf (2000mN), 400gf (4000mN), 800gf (8000mN), 1600 gf (16000mN), 3200gf (32000mN), 6400gf ((64000mN) |
| Indication accuracy                        | ±1% |
| Resolution                                | 1mN |
| Tearing Length | 43±0.5mm |
| Sample Holder | Pneumatic |
| Pendulum Release                       | Pneumatic |
| Dimension | 470mm×340mm×530mm |
| N.W. | 30kg |
ENVIRONMENT REQUIREMENT | |
| Air Pressure | 0.6 Mpa(User-Supply) |
| Temperature | 15℃-50℃ |
| Relative Humidity | No more than 70%,no dewdrop |
| Power Supply | 220V Â 50Hz |
