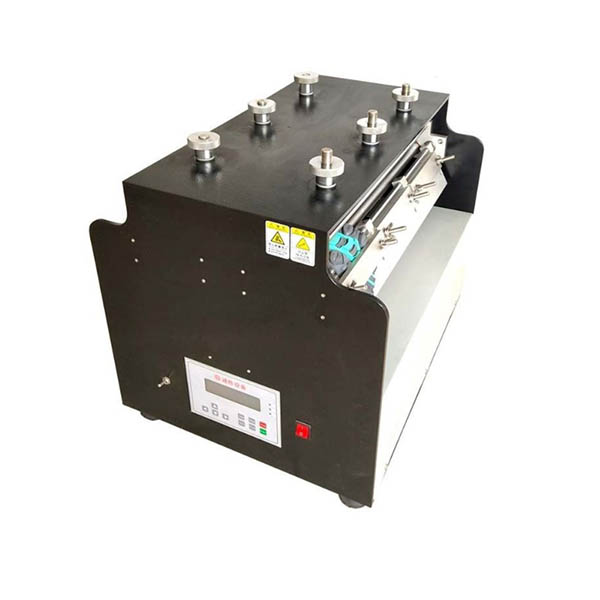

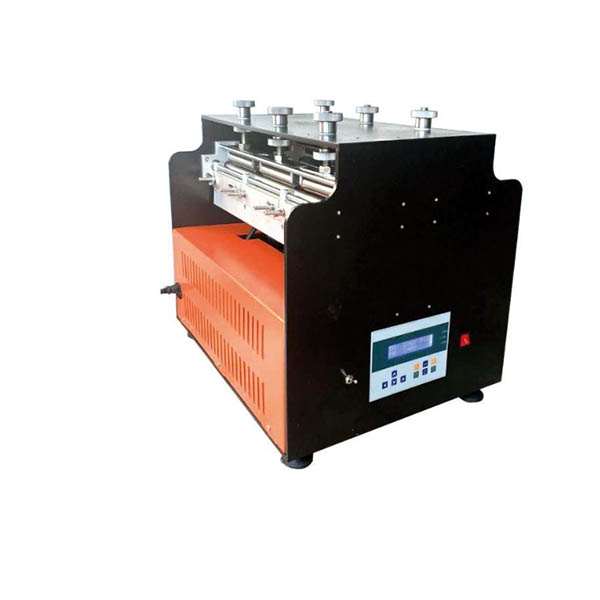

ASTM-D1052 ISO-5423 ROSS SOLE BENDING TEST MACHINE

Introduction

ROSS sole bending tester is suitable for right-angle bending resistance test of rubber products, soles, PU and other materials. After the test piece is continuously stretched and bent, its attenuation, damage and cracking degree are inspected.

Install the sole strip test piece or sole on the ROSS bending tester, so that the cut falls directly above the center of the rotating shaft of the ROSS bending tester, and the test piece is driven by the ROSS bending tester to bend freely 90 degrees on the axis. After a certain number of tests, the length of the cut of the test piece is measured, and the bending resistance of the test piece is evaluated by the size of the cut growth rate.

Comply standards:

GB/T2099-2007, ASTM-D1052, ISO-5423, SATRA TM60, HB-T2411HG/T 2411 and other standards.

Features:

• Surface treatment of the machine: using American DuPont powder, electrostatic spray painting process, high temperature 200℃ curing to ensure long-term non-fading.
• LED-SLD806 integrated display control box, menu-based operation mode;
• Position can be adjusted by jogging, and the test speed can be adjusted;
• Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials;
• Precision drive motor, stable operation, low noise;
• With counting and timing self-stop function, the test can be automatically stopped by setting the test value;
• High-precision bearings are selected, the rotation is smooth and stable, and the activity life is long;
• Mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials;
• One-button fully automatic test, simple and convenient operation;

Parameter:

1. Six large soles :(12 test pieces) can be measured at the same time.
2. Bending angle: 90±2º.
3. Speed: 0-100r/min adjustable.
4. Controller: LED-SLD806 integrated display control function
5. Punch: 2.5mm
6. Test mode; automatic shutdown after reaching the test times
7. Fixture features: can test the sole and the piece at the same time
8. Size; 500*610*550mm.
9. Curved shaft diameter: 10mm.
10. Test method: test piece/sole
11. Weight: 105kg.
12. Power supply: AC220V, 10A
