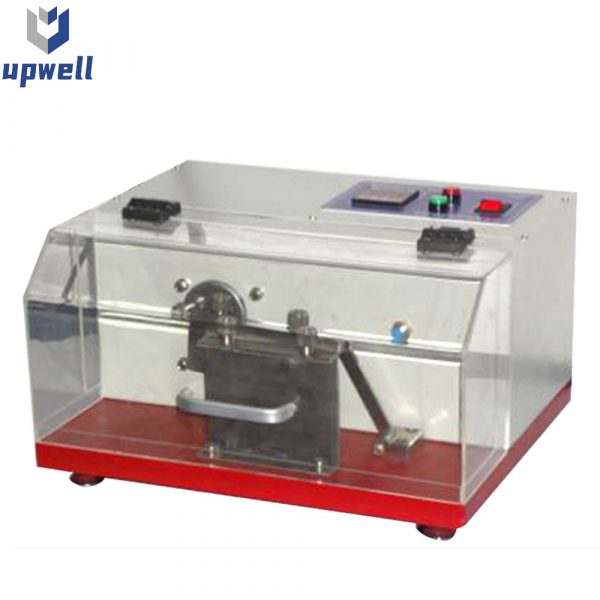

Digital Fabric Down proof Tester
Digital Fabric Down proof Tester is used to determine the downproof capability of fabric used for down garment, quilt and more, which is full with down, feather and fibers.
Standard :BS EN 12132.1Â GB/T 14272
- Description
- Inquiry
 Digital Fabric Down proof Tester is used to determine the downproof capability of fabric used for down garment, quilt and more, which is full with down, feather and fibers.
Digital Fabric Down proof Tester Features:
- Special designed door, put sample in and out conveniently
- Adopts transparent cylinder as rotary box, easy and safe to observe  Â
- High performance motor, box rotates smoothly and stable
Parameter:
| Item | Digital Fabric Down proof Tester |
| The clamp apart spaced | 44±1mm |
| Eccentricity | 25 ± 0.5mm |
| Rubbing speed | 135r/min |
| Sample size | 140 x 420mm |
| Cushion size | 120 x 170mm |
| Test times | 2700(settable) |
| Counter | 0 to 999,900 times |
| Plastic bag width | 150±10mm |
| Plastic bag length | 240±10mm |
| Power Supply | AC 220/110VÂ 60/50Hz 3A |
| Dimensions | Â 400 * 370 * 260 mm |
| Weight | 20kg 45lb |
