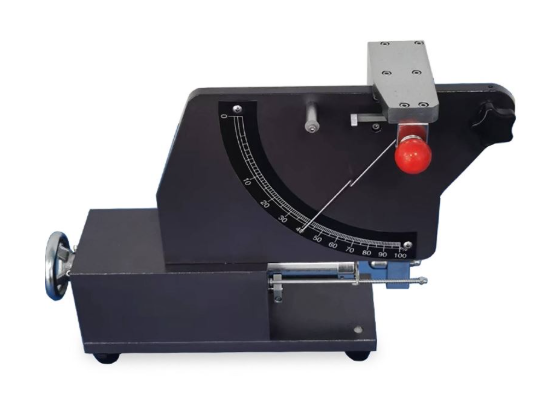

DIN 53512 ISO 4662 VULCANIZED RUBBER IMPACT REBOUND TESTER

Main Functions:

DIN53512 Vulcanized Rubber Impact Rebound Tester, a 0.5J pendulum impact elasticity tester suitable for determining the rebound value of vulcanized rubber and elastomers with a hardness between 30 and 85 IRHD.

Reference Standards:

DIN53512, ISO 4662-2009, and other standards;

Instrument Features:

• Surface Treatment: Uses DuPont powder coating, electrostatic spraying process, cured at 200℃ to ensure long-lasting colorfastness.
• Manual release for easy operation;
• Durable powder coating and anodized surface treatment;
• Mechanical components constructed from non-corrosion-resistant materials and stainless steel;
• Laser-engraved markings for clear and easy viewing;
• Adjustable horizontal position on all four feet;

Technical Specifications:

1. Punch Diameter: Φ15mm;
2. Sample Size: Φ29mm×12.5mm;
3. Impact Mass: 0.35-0.1kg;
4. Impact Velocity: 1.4±0.6m/s;
5. Drop Angle: 90°
6. Exhibitory Strain Energy Density: 351±112kJ/m³;
7. Rebound Indication Error: ±0.5%;
8. Machine Dimensions: 620×120×320mm
9. Weight: 50kg
