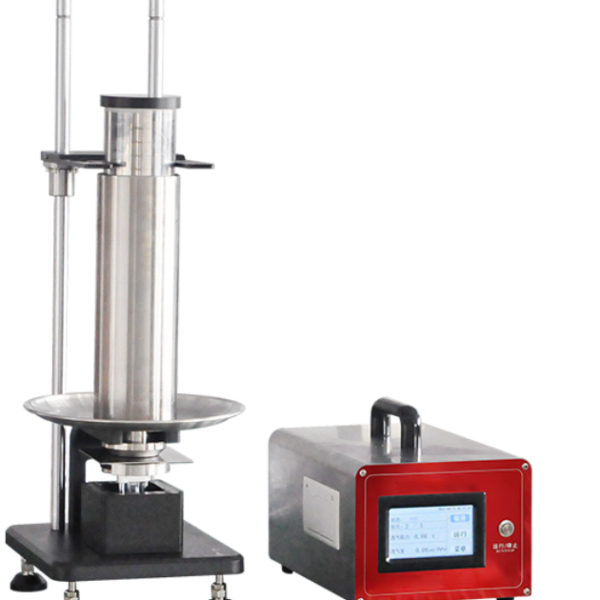

ISO 5636 GURLEY AIR PERMEABILITY TESTER
- Description
- Inquiry
Introduce:
Gurley air permeability tester are the industry standard instrument for the porosity and air permeability for materials like paper, board membranes and plastics.
They work by measuring the time taken for a set volume of air to pass though the material being tested. The unit of measurement is Gurley Seconds.
Comply testing standard:
ISO 5636
Parameter:
| The mass of inner cylinder | 567g |
| Graduations of inner cylinder | 25ml between 0-100ml 50ml between 100-300ml |
| Height of inner cylinder | 254mm |
| External diameter of inner cylinder | 76.2mm |
| Height of outer cylinder | 254mm |
| Internal diameter of outer cylinder | 82.6mm |
| Test Area | 28.6mm |
| Timing accuracy | ±0.1s |
| Dimension | 300mm×360mm×750mm |
| Weight | 20Kgs |
| Power Supply | AC 220V, 50Hz, 100W |
