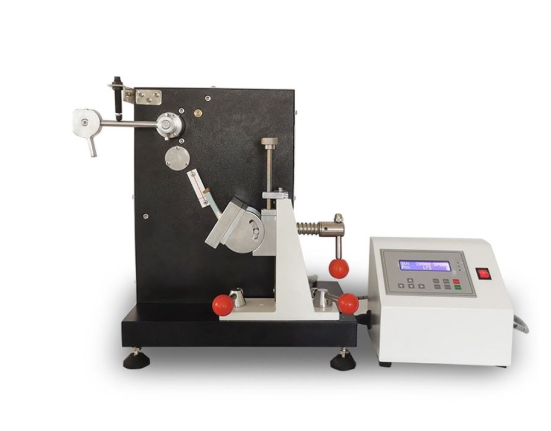

BS-5131 SATRA TM21 SHOE HEEL IMPACT FATIGUE TESTING MACHINE

Main Functions:

This shoe heel impact fatigue testing machine simulates the maximum withstand capacity of a woman’s high heel after repeated small impacts during normal walking.

Reference Standards:

BS-5131, SATRA TM21, QB/T 2864, and other standards.

Instrument Features:

• Surface Treatment: Utilizes DuPont powder coating, electrostatic spraying process, cured at 200℃ to ensure long-lasting colorfastness.

• Universal adjustable fixed test fixture; Mechanical components are composed of non-corrosion-resistant structural aluminum and stainless steel;

• LED-SLD806 integrated display control box, menu-driven operation mode;

• High-precision selected bearings, smooth and stable rotation, long service life;

• Repetitive impact with built-in impact buffer;

Universal movable fixture, adjustable angle for different sized specimens;

Parameter :

Impact Energy:  0.68±0.02J
Impact Frequency: 60 times/minute
Impact Hammer：F(57±1)mm, Thickness(20±1)mm
Moving Parts of Fixture：Adjustable up/down and forward/backward
Adjustable Range of Specimen Seat：Height (H) -25mm
Adjustable up/down and forward/backward：0-90 degrees
Voltage：AC 220V
Weight：75kg
