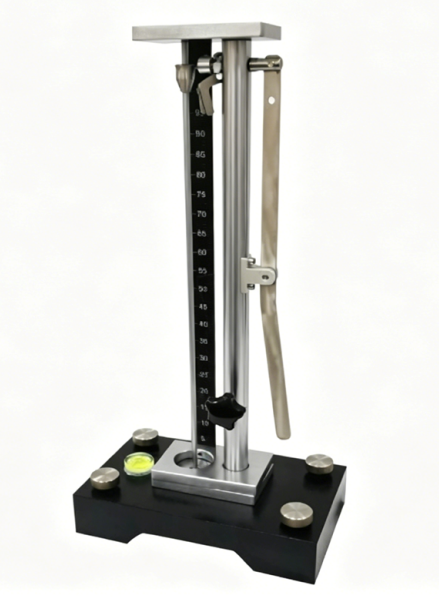

ASTM D2632 RUBBER VERTICAL ELASTICITY TESTING MACHINE

Instrument Introduction:

The vertical elasticity testing machine tests the elasticity of rubber materials using a free-fall weight method. First, adjust the instrument to be level, then raise the weight to a certain height. When placing the specimen, ensure the drop point is 14mm from the edge of the specimen. The first three tests are not used; record the average rebound height of the fourth, fifth, and sixth tests.

Main Functions:

This machine uses the standard test method for rubber properties—the vertical rebound method—to determine the elastic resilience of rubber.

Reference Standards:

ASTM D2632 and other standards.

Instrument Features:

• Manual release, simple operation;
• Integrated viewing frame, adjustable height;
• Mechanical components are constructed of non-corrosion-resistant materials and stainless steel;
• Laser-engraved graduations provide clear and easy-to-read observation;
• All four feet are adjustable for horizontal movement;

Technical Specifications:

Drop Height: 400mm

Drop Weight: 28g

Test Thickness: 12.5mm

Percentage Ruler: 0-100%

Dimensions: 25 x 15 x 52.5 cm

 Weight: 9kg
