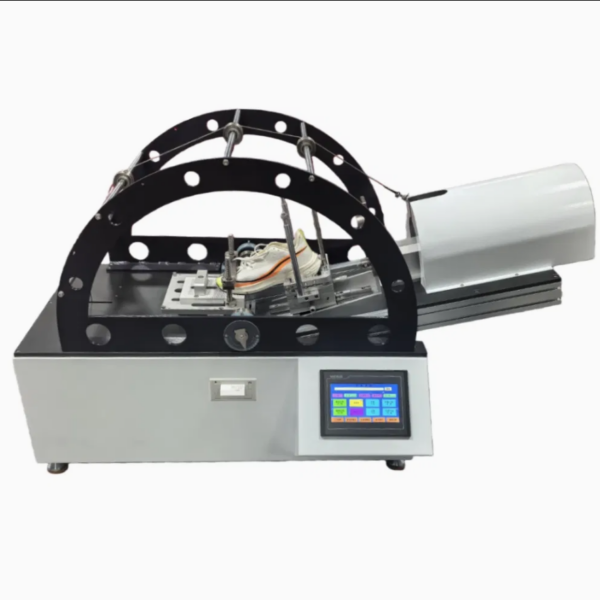

SATRA TM 256 SHOE STIFFNESS FLEXING TESTER
- Description
- Inquiry
Product Description
Shoe Torsional Stiffness Tester is used to fix the toe of the sample shoe, lift the heel of the shoe along the bending line of the sole at a certain angle, and make relative motion around the longitudinal axis at a certain speed to measure the maximum torque required to rotate inward and outward to the set angle.
Test Standards
SATRA TM 256聽
Technical Parameter
| Capacity | 50N.m |
| Resolution | 0.01 N.m |
| Lift Angle | 25卤0.5掳(0~40掳 Settable) |
| TorsionAngle | 0-卤40掳聽(Settable) |
| Torsion Angle Resolution | 0.1掳 |
| Speed | 0-5rad/min(Adjustable) |
| Dimension | 1360脳440脳900mm |
| Weight | 65Kgs |
| Power | 220V, 50/60Hz |
| Standard Configuration | Machine, ISO 17025 lab certificate |
聽
