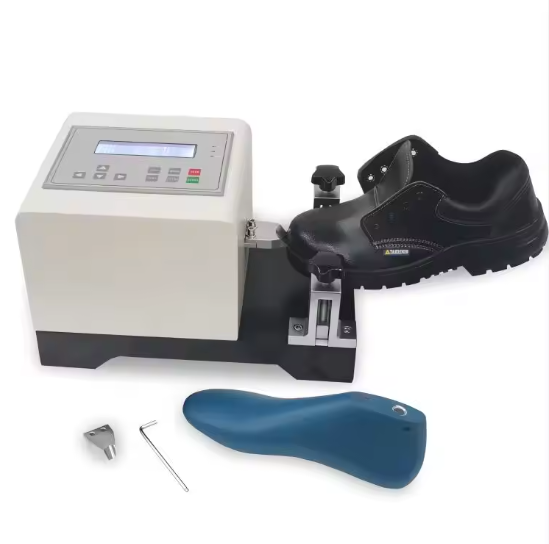

SATRA AM4 TM404 MANUAL LEATHER SHOE PEEL TESTER

Instrument Introduction:



The extended edge of the toe of the finished shoe sole is inserted under the blade of a fixed-arc cutter block connected to a force sensor. The sole and forefoot are placed at a slight angle or horizontally on a fulcrum behind the blade. Utilizing the lever principle, a gradually increasing force is applied to the fulcrum to separate the shoe sole from the upper. The strength of the adhesion between the toe and upper is assessed by the size of the initial separation.



Reference Standards:



GB/T3903.3, BS 4676, SATRA AM4, SATRA AM4 TM404, BS1870, AS2210, NZS 5809, etc.



Product Features:



1. Metallic painted body.



2. Specialized clamps, high-precision machining, beautiful appearance, durable.



3. Precision high-grade motor drive, smooth operation, low noise.



4. LED-SLD806 integrated display and control box, menu-driven operation mode.



5. High-precision sensor, supporting multiple test result displays.



 Technical Specifications:



1. Maximum capacity: 100kg.



2. Blade width: (22±0.1)mm



3. Dimensions: 330*200*180mm.



4. Weight: 12.5kg.



5. Power supply: AC220V, 5A.
