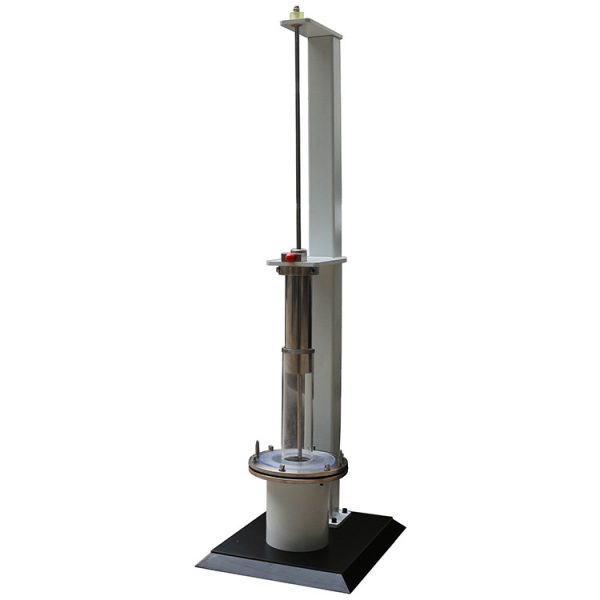

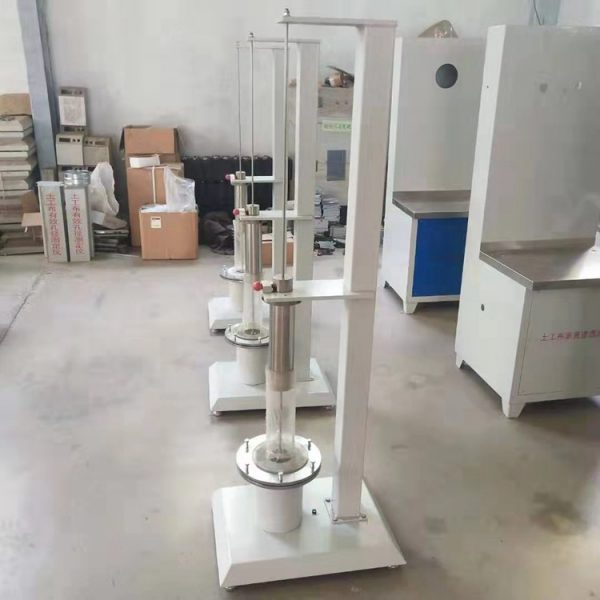

ISO 13433 Geotextile Cone Drop Dynamic Perforation Tester
Geotextile Dynamic Perforation Tester is used to determine the resistance of geosynthetics to penetration by a steel cone dropped from a fixed height.
- Description
- Inquiry
Introduction
Geotextile Dynamic Perforation Tester is used to determine the resistance of geosynthetics to penetration by a steel cone dropped from a fixed height.
Parameter
| Inner diameter of clamping rings | 150mm±0.1mm |
| Test height | 500 mm±2mm |
| Angle of stainless steel cone | 45° |
| Max. diameter of stainless steel cone | 50±0.1mm |
| Mass of stainless steel cone | 1,000g±1g, |
| Mass of measuring cone | 600g±1g |
| Resolution of measuring cone | 2mm |
| Dimensions | 435×575×1600mm mm (L×W×H) |
