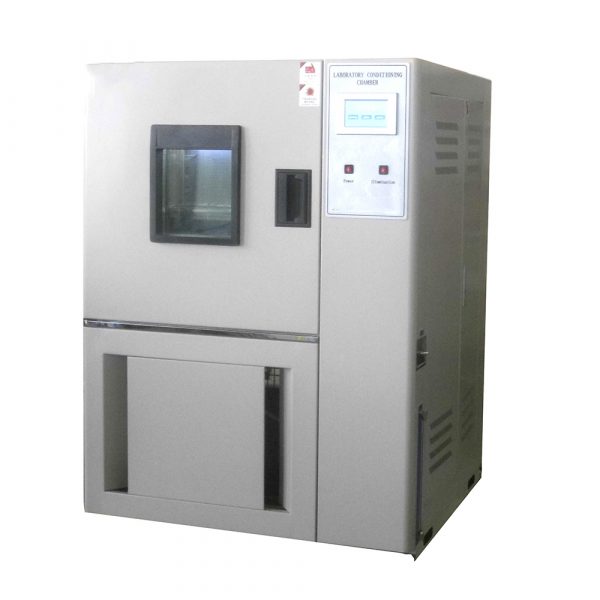

ISO139 Laboratory Conditioning Chamber

Laboratory Conditioning Chamber is used to provide an environment of constant temperature and relative humidity for the conditioning of various textiles before testing.

Related Testing Standard:ISO139

Categories: TEXTILE TESTING MACHINE Tags: ISO139, Laboratory Conditioning Chamber

Description
Inquiry

Application:

Laboratory Conditioning Chamber is used to provide an environment of constant temperature and relative humidity for the conditioning of various textiles before testing.

Key Specification:

Model No.	125	250
Capacity	125L	250L
Internal dimensions (L×W×H)	500×500×500mm	520×630×780mm
Temperature range	20 ~ 80 oC
Temperature accuracy	±2oC
Temperature resolution	0.1oC
Humidity range	38% ~ 98%RH
Humidity accuracy	±3%RH
Humidity resolution	0.1%
Run time	0.01min ~ 99h59min
Heating rate	2~3oC/min (without load)
Cooling rate	≤1oC/min (without load)
Power supply	AC220V, 50Hz
Environmental requirement	Room temperature: 15 ~ 25oC, Humidity: ≤85%RH, well-ventilated
Gross weight	310kg	400kg
Package dimensions (L×W×H)	1070×1050×1730mm	1200×1150×2000mm
