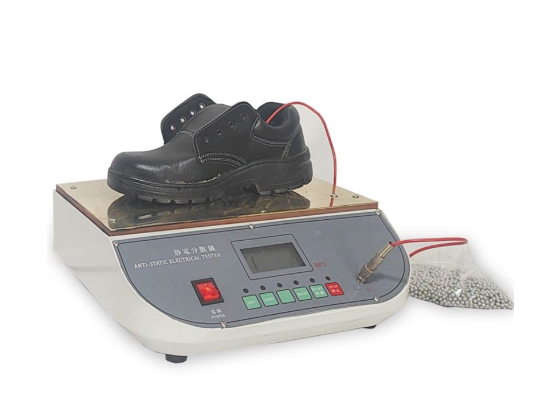

ISO20344 SAFETY SHOES ANTI-STATIC ELECTRICAL TESTER

Introduction:

Safety shoes anti-static electrical tester mainly tests and evaluates safety shoes, protective shoes and occupational shoes with anti-static function. It passes the tested sample with a certain standard voltage through a closed circuit composed of a steel ball and a copper plate, and tests the resistance of the test sample, anti-static and insulation resistance range values ​​to evaluate whether the test sample has anti-static performance.

Main functions:

The test can complete the anti-static performance of protective shoes/sole of European standards, national standards, Canadian standards and American standards.

Comply standards:

GB/T20991-2007, EN ISO20344-2012, CSA /CAN-Z195, SATRA, GB/21146-2007, GB/T21148-2020 and other standards.

Standard anti-static reference value:

National and European standards: anti-static in the range of 0.1 to 1000 megohms, voltage is DC100V.

ASTM standard: The anti-static voltage in the range of 1 to 100 megohms is DC50V.

Canadian standard: The anti-static voltage in the range of 1 to 100 megohms is DC500V.

Features:

Body surface treatment: Adopting American DuPont powder, electrostatic spray painting process, and curing at high temperature of 200℃ to ensure long-term non-fading;

Body electrostatic spray painting, beautiful and durable;

Equipped with standard stainless steel beads, not easy to rust;

Control circuit combination, independent research and development, high stability;

One-button automatic test, simple and convenient operation;

External contact induction single-line connection;

The body comes with a drawer-type accessory box for easy collection of accessories;

Parameter :

1. Voltage range: DC50V, DC100V, DC500V (optional).
2. Test range: 0.001-1999 megohms.
3. Test accuracy: ±2%, ±5%, ±10% varies with the test range.
4. Operating environment: temperature 0-40℃, humidity: 20-90%R.H.
5. Volume: 350*330*220mm.
6. Weight: 22kg.
7. Power supply: AC220V, 50HZ.
