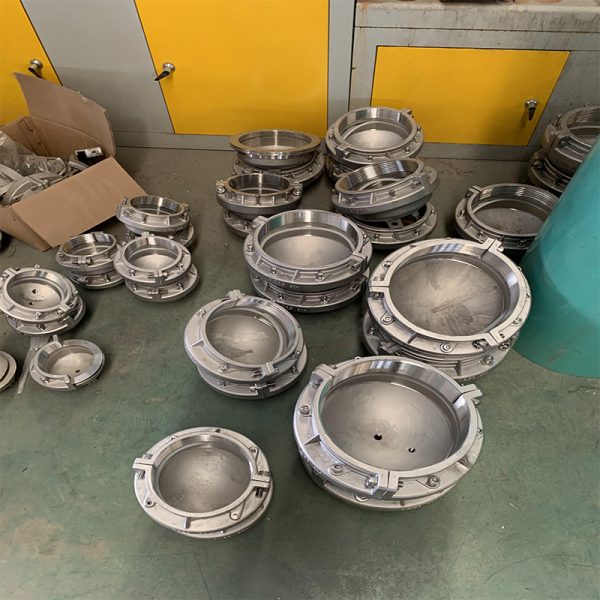

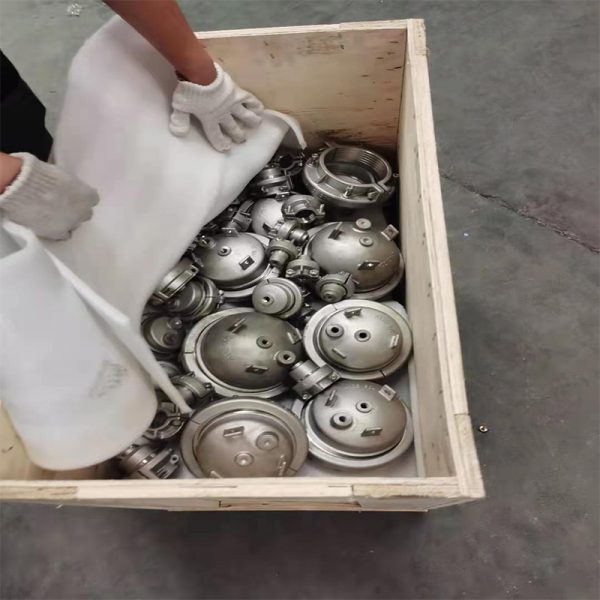

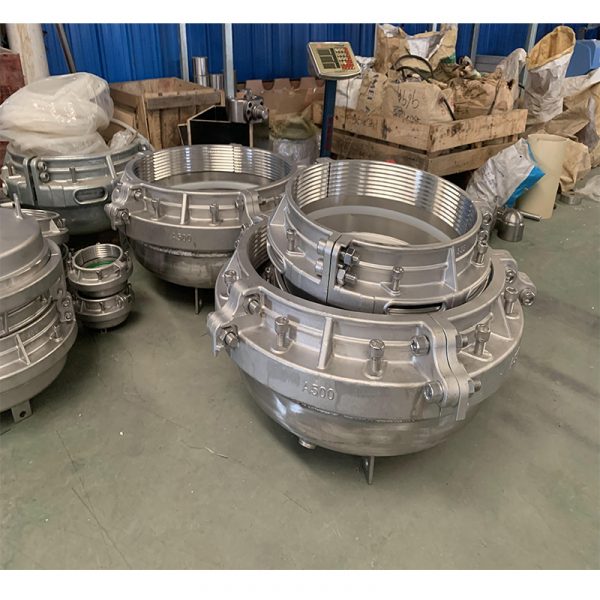

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing  are designed for internal hydrostatic pressure testing of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample, with the characters:

• Casting A-type structural fixture, without intermediate tie rods, has super high pressure resistance.
•       The structure realizes the assembly method of clamping first and then sealing, and the success rate    of clamping and sealing at one time reaches 100%.
• Radial seal, suitable for a wide range of pipes (applicable to PE, PVC, PP-R, steel-lined composite pipes, etc.
• Split type clamping structure, easy to install, can realize automatic centering.
• Large-diameter clamps are suitable for a wide range of pipe diameters. The sample does not need to be reshaped before the test, and it can be easily inserted into the head
• The clamp is light in weight, and the individual components are equipped with hoisting devices, which are convenient to carry, convenient and quick to test and assemble, without special clamping devices, high work efficiency and low long-term use costs. The assembly time of the test fixture for large pipe diameters above Φ200 needs to be less than 30 minutes, and the assembly time for tools of Φ200 and below needs less than 10 minutes
• The casting fixture is made of high-quality 304 stainless steel material, which is pickled and passivated after casting, which has super anti-corrosion ability and long service life
• The unique lifting chain device avoids the problems that the thin-walled tube sample is broken and the bottom clamp is difficult to lift; the hooks for the clamps are provided for easy suspension
• There is a permanent mark on the fixture to indicate the model information.
• The model of the radial outer sealing fixture



Parameter :

Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, Φ75, Φ90, Φ110, Φ125, Φ140, Φ160, Φ180, Φ200, Φ225, Φ250, Φ280, Φ315, Φ355, Φ400, Φ450, Φ500, Φ560, Φ630
