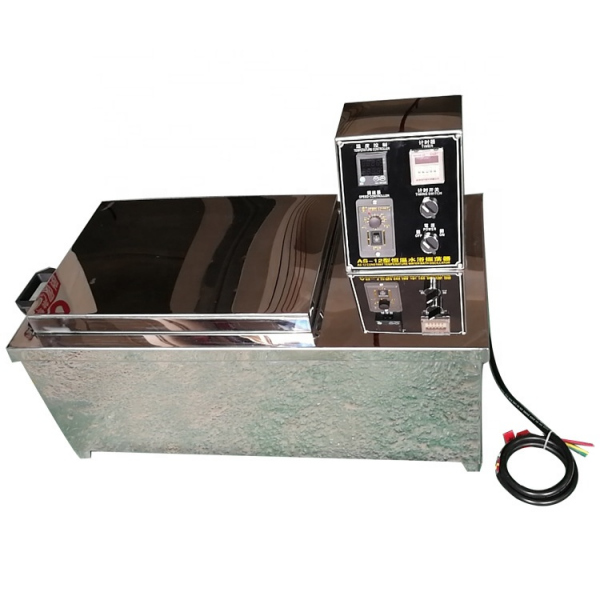

Textile and Fabric Testing Thermostatic Shaking Incubator Water Bath Shaker is a normal temperature oscillation type small size dyeing machine, used for simulating the dyeing in actual production process. It can perform evenly mixing of the recipes simultaneously, so that allows more spare time of the operator to increase efficiency.

  • Description
  • Inquiry

Textile and Fabric Testing Thermostatic Shaking Incubator Water Bath Shaker is a normal temperature oscillation type small size dyeing machine, used for simulating the dyeing in actual production process. It can perform evenly mixing of the recipes simultaneously, so that allows more spare time of the operator to increase efficiency.



Feature:



lStainless steel construction;

lGood flexible beaker holder, can contain 12/24 pcs of 250ml conical flask;

lFitted two heaters, digital electronic temperature controller incorporating over-temperature protection;

lPT100 temperature sensor, high accuracy temperature control;

lProgrammable rate of rise temperature, up to 9 programs, can preset rate of rise temperature,

         temperature keeping time, etc





Parameter:

Beaker number

12

24

Temperature range

20~99℃

Temperature accuracy

±1℃

Temperature increment

1~4℃/min

Timing range

0~99min

Liquor ratio

1:5~1:100

Oscillating speed

0~160RPM, adjustable

Amplitude

42mm

Beaker volume

250ml

Power supply

AC220V, 50Hz, 3kw

AC220V, 50Hz, 4kw

Instrument size

695×530×320mm

980×530×320mm

Instrument weight

45kg

65kg





STANDARD CONFIGURATION

No.

Item

Quantity

1.

Main machine

1 set

2.

250ml Conical flask

12pcs for AS-12

24pcs for AS-24
