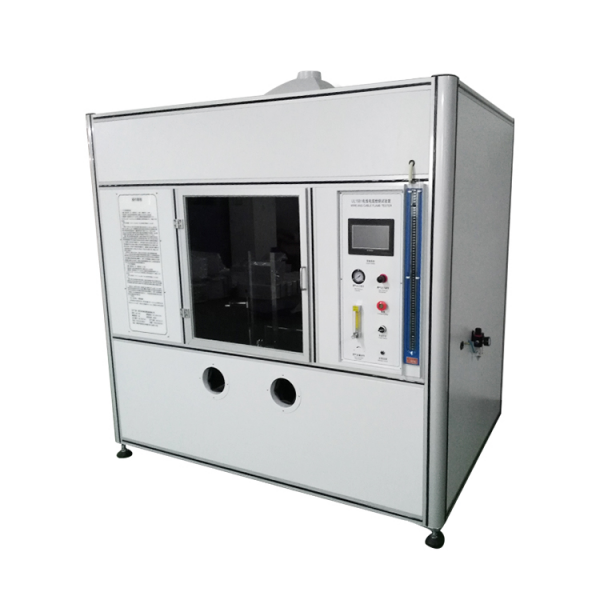

UL1581 Wire and Cable Flammability Tester

Product introduction :

UL1581 Wire and Cable Flammability Tester is suitable for testing the flame retardant properties of the insulating layer of wires and cables under abnormal conditions such as overheating and overcurrent. The laboratory consists of a test part and a control part. The control system has a high degree of automation, with automatic ignition and temperature correction functions, digital display of temperature and time, convenient observation and recording, and stable and reliable use.

Reference Standard:

• UL1581-2006 section 1080 (VW-1 burning test), section 1100 (horizontal specimen / FT2 burning test) the corresponding provisions of the design.

Technical parameters :

• High anti-corrosion steel plate sealed, sprayed with high anti-corrosion paint, no air circulation during the test

• There is a tempered glass observation door on the front of the box, which is convenient for observing the test situation.

• The operation panel is located on the right side of the observation door, which is convenient for observing the test situation

• Internal volume≥4.0m3

• Dimensions: 2100*1360*2200mm

• Thermal sensor (electrolytic copper block 10.0±0.05g and thermocouple)

• Type K thermocouple with jacket of 0.5mm diameter stainless steel tube

• The intelligent PID temperature control meter is matched with the K-type thermocouple, and its reading can reach 1000 ℃
• Timer: 0 ~ 99H99 / 99M99 / 99S99 can be set arbitrarily, the minimum resolution can reach 0.01S

• The time required for the test flame to rise from 100°C±2°C to 700°C±3°C is 54s±2s

• Main fixture: test stand and burning torch

• Test bracket: made of SUS304# stainless steel, divided into horizontal bracket and vertical bracket

• Combustion torch: meet the requirements of ASTM D 5025-05, standard power: 500W; diameter of nozzle: 0.90±0.03mm, length of nozzle: 1.60±0.05mm, inner diameter of nozzle: 9.5mm; height of nozzle from air inlet: 100mm±10mm

• Low-noise industrial fan, rapid exhaust, no gas for test personnel, no harm to the body

• Using PLC control system and large touch screen, the interface is beautiful, the operation is convenient and easy to understand

• Gas: Methane at least 98% pure, customer-provided gas

• The transmission system is controlled by stepper motor, the tilt angle can be set, accurate and easy to operate

Control System:

• (1), mainly including: flowmeter, differential pressure gauge;
• (2), flow meter range: 1000ml/min;
• (3), combustion pressure reducing valve: 1;
• (4), U-type differential pressure gauge: 1.
