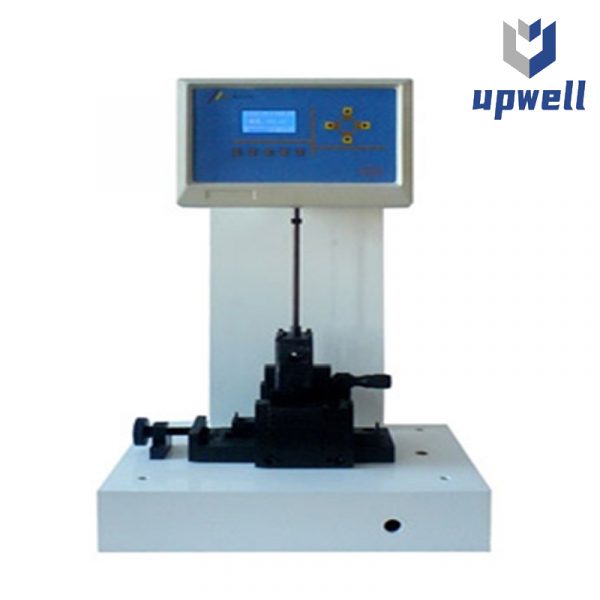

XJC Series Izod And Charpy Impact Tester

Energy: Charpy 1J, 2J, 4J, 5J, 7.5J, 15J, 25J
                  Izod 1J, 2.75J, 5.5J, 11J, 22J
Impact Speed: Charpy 2.9m/s 3.8m/s, Izod 3.5m/s
Support: Charpy 40mm   60mm   70mm 95mm
Izod 22mm
XJC Series Izod and Charpy Impact Tester

Categories: PLASTIC TESTING INSTRUMENT Tags: Izod and Charpy Impact Tester

Description
Inquiry

Introduction

Izod & Charpy Series are innovative multi-test instrument for the determination of polymers and composite materials resilience according to both Charpy and Izod methods.
It also can be connected to the PC. Standards ENISO179, ENISO180, ISO9854, DIN53453, ASTMD256

Features
1) Energy: Charpy 1J, 2J, 4J, 5J, 7.5J, 15J, 25J
                    Izod 1J, 2.75J, 5.5J, 11J, 22J
2) Impact Speed: Charpy 2.9m/s 3.8m/s, Izod 3.5m/s
3) Support: Charpy 40mm   60mm   70mm 95mm
                     Izod 22mm
4) Size (L×W×H): 500mm×350mm×780mm
5) Weight: 130kg
6) Power Supply: AC220±10V  50HZ
7) Working Condition: 20±5℃, RH<80%

Style	Energy	Speed	Display	Measurement	PC Controlled
XJC-5	Charpy 1J 2J 4J 5J Izod 1J 2.75J	C 2.9m/s I 3.5m/s	Pointer	Manual	XJC-5W
XJC-5D	Charpy 1J 2J 4J 5J Izod 1J 2.75J	C 2.9m/s I 3.5m/s	LCD	Auto.	XJC-5DW
XJC-25	Charpy 7.5J 15J 25J Izod 5.5J 11J 22J	C 3.8m/s I 3.5m/s	Pointer	Manual	XJC-25W
XJC-25D	Charpy 7.5J 15J 25J Izod 5.5J 11J 22J	C 3.8m/s I 3.5m/s	LCD	Auto.	XJC-25DW
