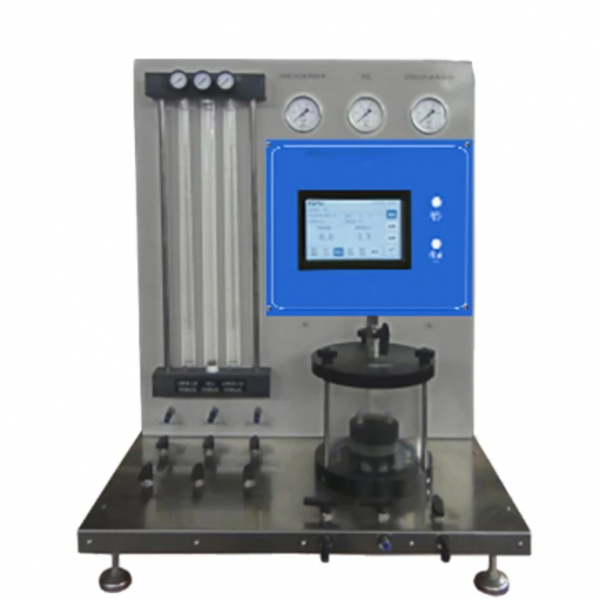

ASTM D5887 Geosynthetics Clay Liner Water Permeability Tester

Introduction:

Geosynthetics Clay Liner Water Permeability Tester Used to detect the permeability coefficient of geotextile pads under specified hydraulic pressure difference conditions within a certain period of time.

Meeting standards:

ASTM D5887, JG/T193, etc.

Instrument features:

1. Large color touch screen display, user-friendly interface design for easy operation;
2. The deletion method uses selected deletion, which is convenient for deleting any test result;
3. The test time is displayed during the test, which is convenient for adjusting the test time;
4. The panel is made of special aluminum material and metal buttons, which are sensitive to operation and not easy to damage;
5. The core control components use ST 32-bit multi-function motherboard
6. The instrument includes Chinese and English interfaces, which is convenient for foreign customers to inspect.
7. The surface spraying of the instrument adopts high-quality electrostatic spraying technology
8. The instrument is equipped with a precision level detection device.
9. The instrument is designed as a desktop computer, with stable operation and low noise.

Technical parameters:

1. Sample diameter: φ100mm;
2. Confining pressure: 0~600Kpa continuously adjustable;
3. End pressure: 0~550Kpa continuously adjustable;
4. Permeability: measured by ruler, accuracy 1mm;
5. Pressurization method: air pressure, uniform pressure increase 70kpa/min;
6. Maximum volume of water storage cylinder: 90mlx3;
7. Permeable stone diameter: Φ100mm;
8. Volume: 785*535*1030mm;
9. Weight: 35kg;
10. Power supply: AC220V50HZ 1.5kw;
