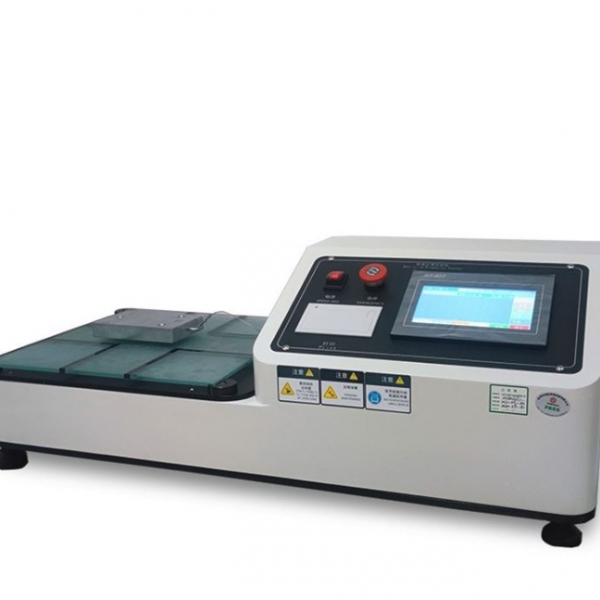

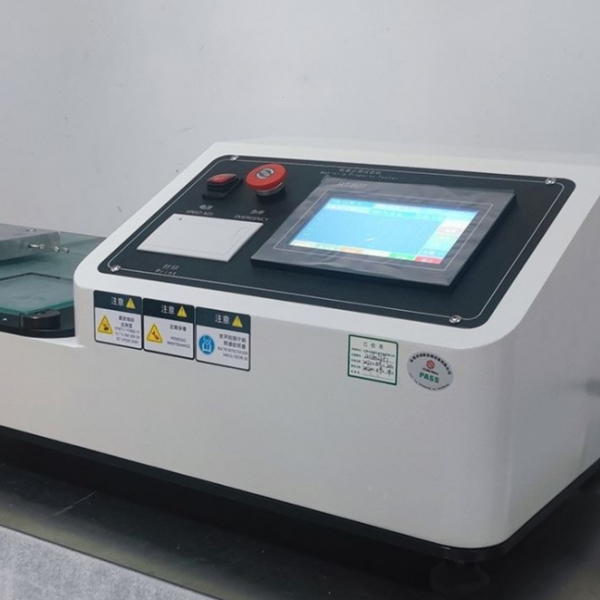

ASTM F609 SHOE ANTI-SLIP TESTER

Introduction:

ASTM F609 sole anti-skid test machine tests the static anti-skid performance of footwear, and tests the static anti-skid performance of soles, heels or similar materials;

Comply standards:

ASTM-F609 “Standard Test Method for Flat Pull Sliders (HPS)” and other standards;

Features:

• Surface treatment of the machine: using American DuPont powder, electrostatic spray painting process, and high temperature 200℃ curing to ensure long-term non-fading.
• LED-SLD806 integrated display control box, menu-based operation mode;
• Precision drive motor, smooth operation, low noise;
• With counting and timing self-stop function, maximum force and speed display;
• High-precision bearings, stable rotation, long activity life;
• Mechanical parts are composed of non-corrosive structure and stainless steel materials;
• One-button fully automatic test, simple and convenient operation;
• Configured with S-type precision sensor, flat pull induction;

Parameter:

Weight: 2.7kg

Test speed: 0-200mm/min

Test piece size: 16mm

Accuracy: ±1%

Volume: 76*42*39cm

Weight: 65kg

Power supply: AC220V, 10A
