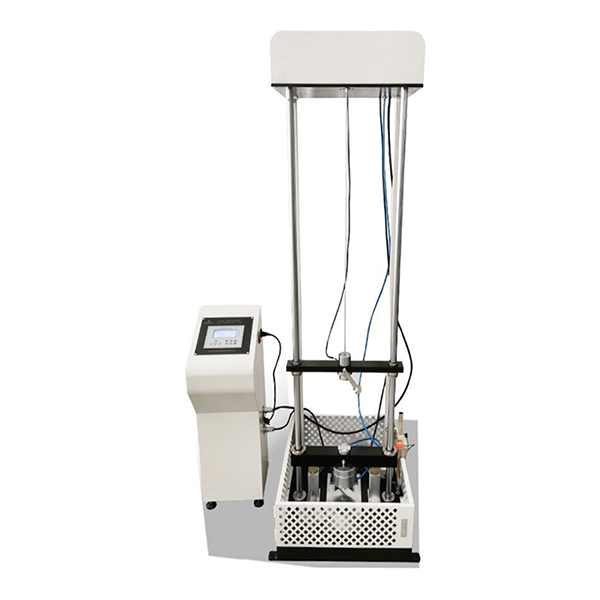

BS EN-344 ISO 20344 SPORTS KNEE PAD IMPACT TESTING MACHINE

Introductions:

The sports knee pad impact tester tests the damage of sports protective gear after a certain impact energy, and the protective performance test method.

Comply standards: :

ANSI-Z41, BS EN-344, CSA-Z195, ISO-20344, LD-50, EN ISO 20344:2004, LD50-1994, ASTM F2412-11, EN12568-2010, CNS 6863-82, GB 4014-1983, JIS-T8101:2000 and other standards.

Features:

Surface treatment of the machine: using American DuPont powder, electrostatic spray painting process, high temperature 200℃ curing to ensure long-term non-fading;

Mechanical parts are composed of non-corrosive structure and stainless steel materials;

Precision motor drive, accurate control, stable operation, low noise;

LED-SLD806 integrated display control box, menu-based operation mode;

One-button fully automatic test, simple and convenient operation.

Imported high-precision bearings, low friction and high precision;

Support double cylinders to prevent secondary impact, achieve *, and eliminate old spring push-pull devices;

Specially made strong code tensile mesh wire weight loss, safe and reliable, long life;

High energy customization, speed display, automatic positioning adjustment function;

Support multi-national standard test methods, simple operation;

The fuselage is specially equipped with a protective net to prevent test flying pieces and accidental injury to operators;

Laser induction switch, high energy accuracy, sensitive induction;

Independent control console to prevent vibration data;

Parameter:

Effective test height of the instrument                                            1200mm

Impact bell                                          One set of (20±0.2)kg (EN, GB) and (22±0.2)kg (CSA, USA)

Speedometer                                                                      Digital energy display

Impact method                                                                            Free fall

Release method                                                             Electromagnetic release

Secondary impact prevention                                             Double cylinder

Secondary induction switch                                  Photoelectric induction, accurate and sensitive

Size                                                                                       690×650×1880mm

Weight                                                                                            118kg

Power supply                                                                               AC220V
