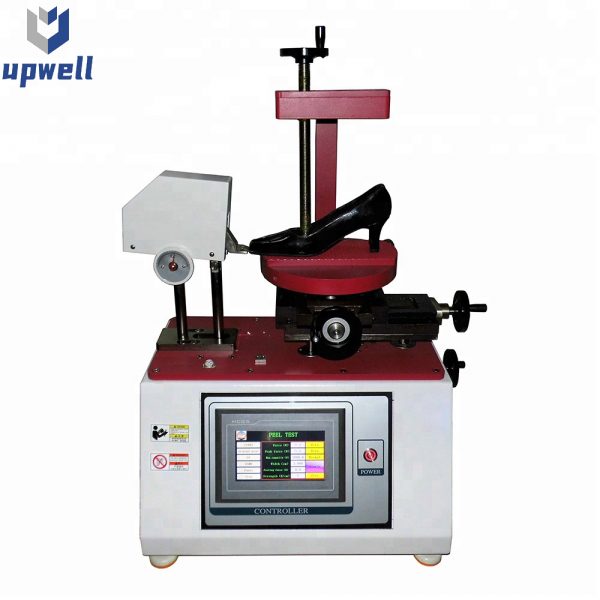

Footwear Adhesive Peel Strength Tester
Footwear adhesive peel strength tester applies to determine the peeling strength between upper and sole. A shoe with last is peeled by a knife; meanwhile the peeling strength is calculated base on the peeling force and knife edge width. Â
- Description
- Inquiry
Application:
Footwear adhesive peel strength tester applies to determine the peeling strength between upper and sole. A shoe with last is peeled by a knife; meanwhile the peeling strength is calculated base on the peeling force and knife edge width. Â
Features:
1  Hard and durable peeling knife;
2Â Shoe base can move by rotating the hand wheels, convenient for mounting specimen;
3Â Pause function allows operator to examine the specimen in test process;
4Â LCD touch screen, easy to operate.
Footwear adhesive peel strength tester Parameter :
| l  Max. capacity | 2000N |
| l  Accuracy | ±1% |
| l  Knife edge width | 20±0.1mm, 10±0.1mm |
| l  Knife speed/Peeling speed | 20±2mm/min |
| l  Power supply | AC 220V 50Hz |
| l  Package dimensions | 790×470×1010mm (L×W×H) |
| l  Net/Gross weight | 98/117kg |
