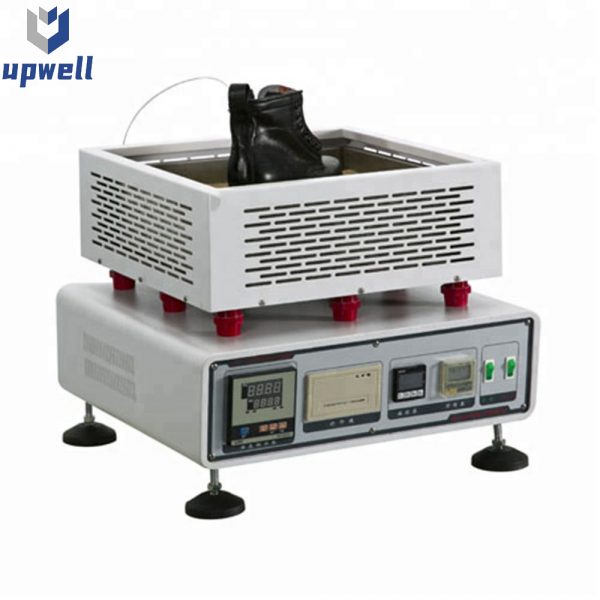

ISO 20344 5.12 Shoes Sole Thermal Heat Insulation Resistance Tester
Heat Insulation Resistance Tester is used to determine the resistance of the shoe material to heat.Â
Related Testing Standard:ISO 20344 5.12
- Description
- Inquiry
Application:Â Â
 Heat Insulation Resistance Tester is used to determine the resistance of the shoe material to heat. The specimen (a whole shoe) is placed on the hotplate with a specified temperature for a certain period to examine the increase of temperature inside the shoe.Â
Shoes Sole Thermal Heat Insulation Resistance Tester Parameter:
| Sand bath size | (40±2)cm×(40±2)mm |
| Sand bath height | At least 5cm |
| Volume of sand | (5000±250)cm3 |
| Sand granular size | 0.3~1.0mm |
| Temperature of hotplate | Room temperature~150±5℃/250±5℃ |
| Accuracy of temperature probe | ±0.5℃ |
| Thick of copper disc | 2mm |
| Diameter of copper disc | 15mm |
| Heat power | 2500W |
| Temperature recording method | Temperature recorder, automatically record temperature     and print it out in sequence |
| Power supply | AC220V 1.5Kw |
Â
