ISO 2505 Pipe Longitudinal Retraction Rate Tester

ISO 2505 Pipe Longitudinal Retraction Rate Tester

  • Description
  • Inquiry

Introduction:

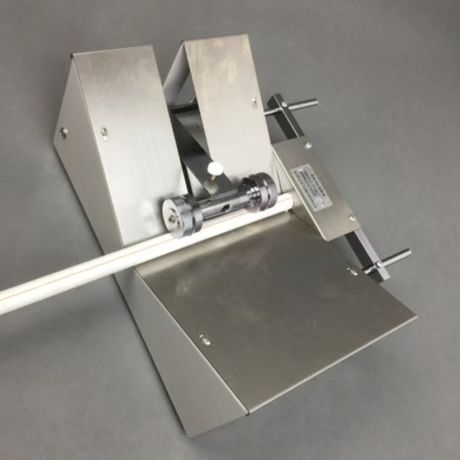

Pipe Longitudinal Retraction Rate Tester In accordance with ISO 2505 determination of longitudinal shrinkage of thermoplastic pipes, which is applicable to the determination of longitudinal shrinkage of plastic pipes.The equipment is composed of constant Drying Chamber Oven and pipe heat shrink marking scaleplate







Technical data:

Shrink Marking Scaleplate

Blade thickness2mm
Blade roller spacing100 mm ┬▒ 0.1 mm
The maximum pipe diameter 315mm315mm
Net weight9kg
Gross weight12kg
Overall dimension420 * 360 * 300 mm
Packing wooden cases





Drying Chamber Oven

Voltage220V
Power1500W
Capacity70L
Temp rangeRT-300┬░C
Temp. Fluctuation┬▒1.0┬░C
Timing Range1 – 9999 min
Interior Dimension35x45x45CM
Sheet quantity3PCS
Dimension53x63x67CM
