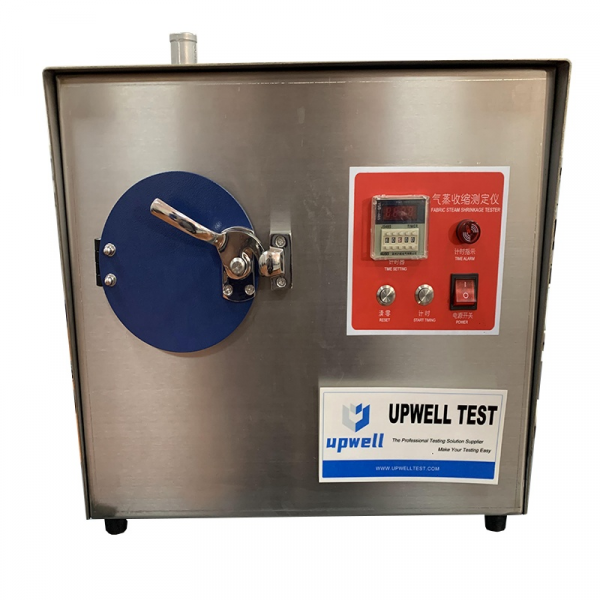

ISO 3005 Fabric Textile Vapor Shrinkage Tester

ISO 3005 Fabric Textile Vapor Shrinkage Tester It is used to test the dimensional changes of woolen fabrics and woven fabrics after steaming.

Standards:
FZ/T 20021, ISO 3005, etc.
Instrument characteristics
A special steam oven is used for heating at a fixed time to control the steam and a certain steam pressure, and the automatic water replenishment function ensures the integrity and continuity of the test; and a buzzer alarm device to ensure the safety of the instrument.

Technical Parameter
1. Steam working pressure: 0~380kPa adjustable
2. Steaming rate: 70±14g/min
3. Steaming inner cylinder size: diameter φ100; depth 360mm
4. Sample holder size: 290×60×72mm
5. Dimensions: 420×510×340mm
6. Steam oven: 365×450×775mm
7. Power source: AC220 3KW
