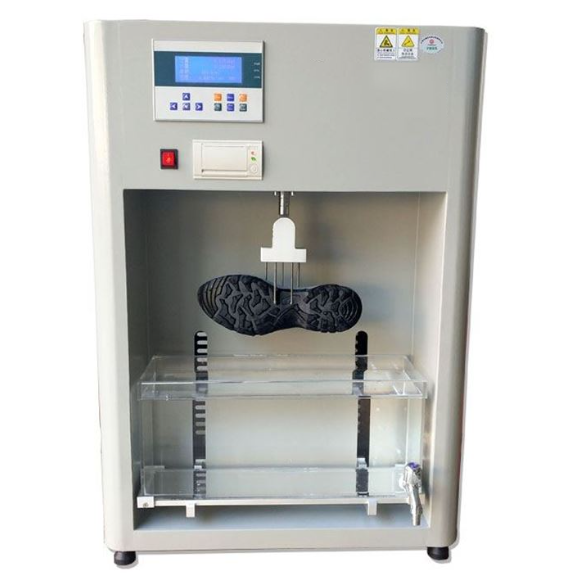

ISO 845,DIN EN ISO 1183,SHOE SOLE SPECIFIC GRAVITY METER TESTER

Introduction:

This ISO 845,DIN EN ISO 1183, shoe sole specific gravity meter tester is used to measure the specific gravity of rubber, plastic, EVA foam, and other materials. It’s easy to use, with one-touch readings for weight in air, weight in water, and material volume.

Functions:

Tests the specific gravity of bulk materials such as rubber, plastic, and EVA foam.

Instrument Features:

• Surface Treatment: DuPont powder is used in an electrostatic spray paint process, which is cured at 200°C to ensure long-lasting colorfastness.
• Mechanical components are constructed of non-corrosive aluminum and stainless steel.
• Integrated LED-SLD806 display control box with menu-based operation. Acrylic transparent water tank for easy sample observation; Automatic lifting screw for smooth and stable operation; Data storage for results and historical records; Built-in micro data printing; One-touch testing for density, volume, and weight; Alloy steel sensor for high precision, stability, and durability;

Technical Parameter:

• Capacity: 1000g
• Display accuracy: ±1%
• Sensitivity: Adjustable 0.5-4mV
• Clamp delay: 0-10s
• Water tank: 500×150×200mm
• Lift travel: 200mm
• Clamps: insertx1, clipx1
• Chinese micro printer list
• Dimensions: 58×40×85cm
• Weight: 52kg
• Power supply: 220V
