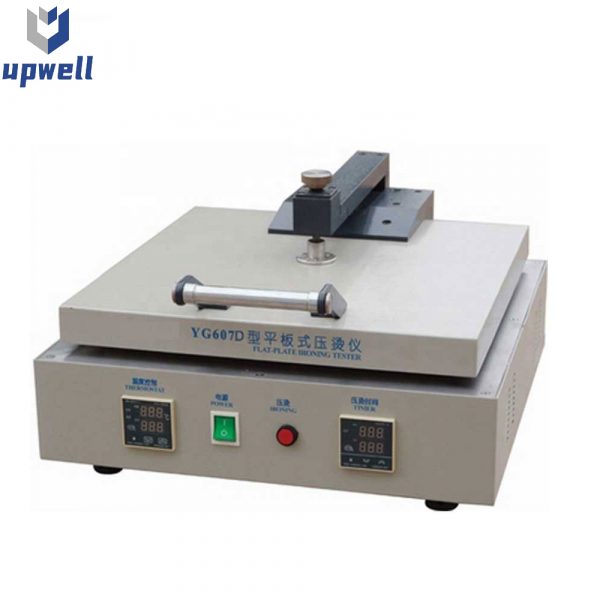

ISO 9866 Hot Flat Bed Press Ironing Tester
Hot Flat Bed Press. A simple heated and thermostatically controlled ironing press for use in testing stability and durability to hot pressing.Â
Related Testing Standard:ISO 9866
- Description
- Inquiry
Application:
Hot Flat Bed Press. A simple heated and thermostatically controlled ironing press for use in testing stability and durability to hot pressing. hot flat bed press is applicable to determinate change in fabrics exposed to dry heat.
 Features of hot flat bed press:
l  Test pressure adjustable;
l  Uniform heating;
l  Temperature and time display by LED.
KEY SPECIFICATION of hot flat bed press
| Press board area | 320×320mm |
| Testing pressure | 0.3KPa(adjustable) |
| Temperature control range | room temperature~ 220℃  ±2℃ |
| Test time | 1~999s |
| Power supply | AC220, 50 HZ. |
| Dimension | 460×380×310mm (L×W×H) |
| Weight | 40kg |
