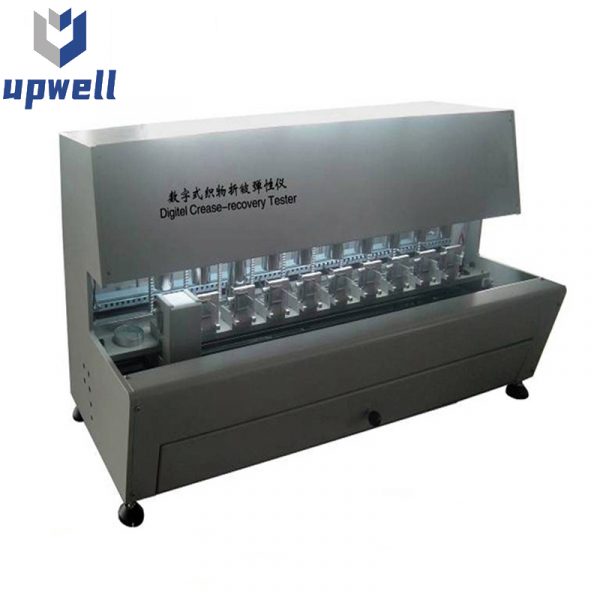

ISO2313 AATCC66 Fully Automatic Fabric Crease-Recovery Tester
Intelligent Fabric Crease Recovery Tester is used for testing fabric recoverability after being creased.
Related Testing Standard:ISO2313 AATCC66 M&S
- Description
- Inquiry
Applicable Range:
Intelligent Fabric Crease Recovery Tester is used for testing fabric recoverability after being creased.
Instrument characteristics:
3.1 Shade-black-box design, rotary-Position
3.2 Pressure increasing and relief manually controlled , stepper motor flap, intelligent measurement
3.3 CCD imaging, dynamic and static images processing
3.4 A variety of charts and data statistication, analysis, storage and output
3.5 Built-in electrical angle measuring instrument by computer software, the results can be amended in accordance with imaging data to process the complex situation of testing
Technical parameters:
| Working pattern | computer controlled, Rotary-position, CCD imaging, automatic computer processing images and datas |
| Imaging sensor | CCD |
| Measuring method | fast elastic 15±1s slow elastic 5min±5s |
| Pressure load | 10±0.05N |
| Pressured time | 5min±5s |
| Pressured area | 18*5mm |
| Angle measuring accuracy | 0~180±0.1° |
| Work position | 10digits |
| Power source | AC220V 50Hz 120W |
| External dimension | 600*550*680mm |
| Weight | 65 kg |
